Wiring Diagram - 2HH, 1 Volume , 3 way blade switch, no tone

[Sylaar76]

Hi,

I've been searching for days for a wiring diagram for 2 humbuckers wired 2 a 3 way strat type blade switch and no tone pot. Has anyone got one they could share or know of an online resource where I can find it or point me to it.
I've searched various forums, pickup websites, google etc but I've come up blank.

Thanks in advance.



[Jack_TriPpEr]

Re: Wiring Diagram - 2HH, 1 Volume , 3 way blade switch, no tone

Hi,

I've been searching for days for a wiring diagram for 2 humbuckers wired 2 a 3 way strat type blade switch and no tone pot. Has anyone got one they could share or know of an online resource where I can find it or point me to it.
I've searched various forums, pickup websites, google etc but I've come up blank.

Thanks in advance.

If you have found any that match except for the fact that they also include a tone control, use one of those except exclude the tone control and the wires that go to it.



[Sylaar76]

Re: Wiring Diagram - 2HH, 1 Volume , 3 way blade switch, no tone

Yea ive seen some as you mentioned but I wouldn't know where the spare wires would go



[AlexR]

Re: Wiring Diagram - 2HH, 1 Volume , 3 way blade switch, no tone

If you have no tone control, then why would you attach wires that go nowhere in the first place.......read the instructions in the post above yours.....



[Artie]

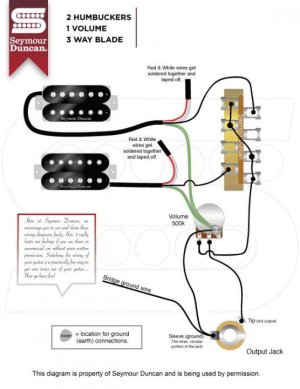

Re: Wiring Diagram - 2HH, 1 Volume , 3 way blade switch, no tone



[GuitarDoc]

Re: Wiring Diagram - 2HH, 1 Volume , 3 way blade switch, no tone

There you go. What could be simpler than that?



[Artie]

Re: Wiring Diagram - 2HH, 1 Volume , 3 way blade switch, no tone

It would be simpler if SD made that diagram and I didn't have to "edit" it.



[GuitarDoc]

Re: Wiring Diagram - 2HH, 1 Volume , 3 way blade switch, no tone

Ha, ha.

Yeah, simpler for you but not for SD.
