wiring diagram dude stack/sack plus

V

vidalsh

New member
Hi, there are two wiring diagrams for the same config:

1st: comes with my yjm pickups instructions:


2: at SD wiring diagrams:



the bridge pickup will be one tb-11.

In diagram 1 hot seems to be black but in 2nd seems to be white.

Which is the correct diagram for yjm stk-s10 at neck and middle and tb-11 at bridge?

thanks...

Re: wiring diagram dude stack/sack plus

vidalsh said:
Hi, there are two wiring diagrams for the same config:

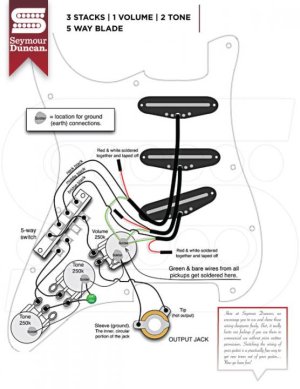

1st: comes with my yjm pickups instructions:

View attachment 71843

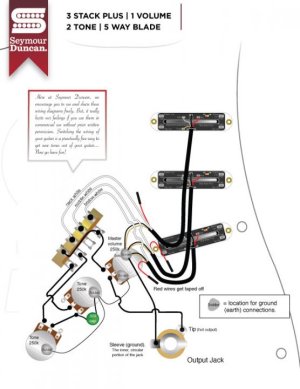

2: at SD wiring diagrams:

View attachment 71844


the bridge pickup will be one tb-11.

In diagram 1 hot seems to be black but in 2nd seems to be white.

Which is the correct diagram for yjm stk-s10 at neck and middle and tb-11 at bridge?

thanks...
Click to expand...


they are identical.. i do not think it will matter unless im not seeing something

Re: wiring diagram dude stack/sack plus

Top diagram has conventional Duncan HB 4 conductor plus shield wiring, same as the TB11 would have.
Bottom one has 3 conductor plus shield, specific to the Stack Plus pickups with the white as hot.
Otherwise, the wiring is pretty much identical as Brandenburg states. Just wire in the TB11 as per the top one.

Re: wiring diagram dude stack/sack plus

thanks you so much...and sorry for my bad english...

so, If I understand well, top one is the correct wiring for my yjm´s and tb-11, for all 3 pickups is the same...

black wires (as hot) to the 5 way switch, red and white wires taped off, and green and bare wires as ground to the volume pot, isn´t it?

thanks...

Re: wiring diagram dude stack/sack plus

damn ya got good eyes.. even after Will S-T said something i had to really look

Re: wiring diagram dude stack/sack plus

vidalsh said:
thanks you so much...and sorry for my bad english...

so, If I understand well, top one is the correct wiring for my yjm´s and tb-11, for all 3 pickups is the same...

black wires (as hot) to the 5 way switch, red and white wires taped off, and green and bare wires as ground to the volume pot, isn´t it?

thanks...
Click to expand...

Yes sir, you may however might want to install a push/pull pot to single coil the TB11 for more versatility.

Re: wiring diagram dude stack/sack plus

just finished and...WOW...

thanks you guys, I´ll write a new post to exprecience of this new super strat... ;)
