Wiring diagram help, Lil 59, Duckbucker, Fullisize hum strat

[Jpodesz]

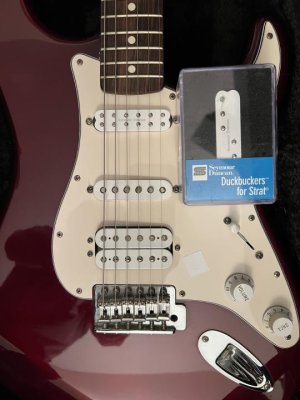

Hi, this has been super helpful and was curious if there was a link to the wiring diagram for a Lil 59 (neck) Duckbucker (middle) and full-size humbucker (bridge) going into just 1 volume and 1 tone knob strat at 250k. Thanks so much, the Duckbucker is going to replace in the middle position (picture)



[GuitarDoc]

First of all, I would be incline to recommend 500k pots, even though this diagram shows using 250k pots (unless, of course, you like having a darker tone).

https://www.seymourduncan.com/images/wiring-diagrams/SCHSCHSCH_5W_1V_1T.jpg



[Jpodesz]

Thanks, will this work even though the bridge is a full-size humbucker? Non Seymour full size humbucker?



[Mincer]

Actually, it would be better for the full-size humbucker. The Duckbucker and Little 59 can sound good with either 500k or 250k pots- they were designed to drop right in a Strat. For a diagram, the closest I've found is this, but it uses a single coil-sized humbucker in the bridge with Duncan colors. You'd have to translate to whatever pickup you have in the bridge.



[GuitarDoc]

Depending on which pup you have for the bridge, here is a color code comparison chart...

https://guitarelectronics.com/guitar-wiring-resources/humbucker-wire-color-codes/
