Wiring diagram help

[The Taylorplayer]

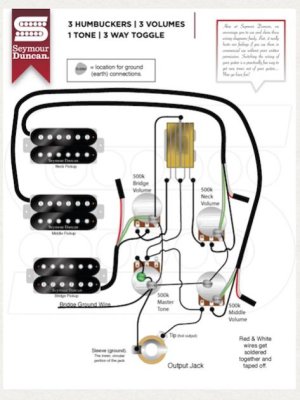

To all - Plz excuse the fact that I am a novice when it comes to wiring electric guitars. I have a three pickup electric guitar that needs to be rewired. I have all the original parts except the switch. I purchased a Switchcraft right angle switch for 3 pickup guitars - model number EP4365. I need to know if that would work with the attached S.D. diagram? if so, plz explain exactly how to connect it. If not, is there another right angle sw. that would work better? Any advice - most appreciated!
An end shot showing the lugs on the the sw. I have would look like this - with screws on the side. Bottom middle lug = double thickness.

I I

I II I



[Downrazor11]

Re: Wiring diagram help

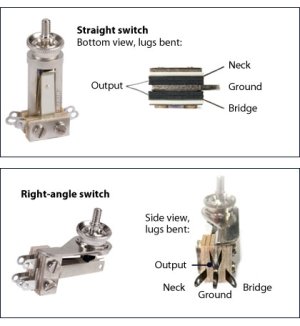

Here is the connection graphic from stewart macdonald's website:



The only difference between the switch you ordered and the switch in the wiring diagram you posted is that the lug between the neck and bridge is ground, not output as seen in the diagram above. The switch output is through the upper pair of lugs (joined).. There's more in-depth info through the StewMac link above.

Does this make sense?
