wiring for out of phase

[weldaar]

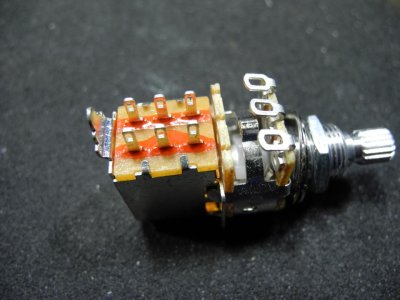

I want to wire my LP for out of phase tone. Does it make a difference which volume pot I use? And can someone post the wiring for this. I have attached a pic of the switch. There are a lot of lugs and i find it a bit confusing.



[blueman335]

Re: wiring for out of phase

All you need to do is reverse the phase on one PU, it doesn't matter which one. Doesn't have to be a volume pot either, you can have a tone pot push-pull for phase. Phase involves only hot and ground, so a 4-lead wire isn't needed. The Jimmy Page system has the volume pots for coil cut, and the bridge tone pot for phase. By using both at the same time, this set up also lets you switch which bridge coil is active during coil cut (screw or coil).



[gregory]

Re: wiring for out of phase

https://docs.google.com/gview?embed...com/wp-content/uploads/2016/05/WD_H_phase.pdf



[weldaar]

Re: wiring for out of phase

Thank you.
