Wiring Help Needed

S

skh515

New member

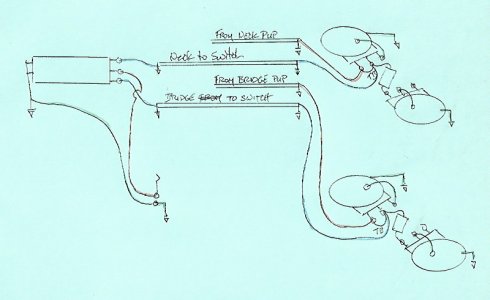

I'm trying to wire up a Les Paul with p90s. It seems like everything is going to ground. I've attached a copy of my wiring diagram. Can someone look at it and see if I've made a mistake? I'm shooting for 50s mod with Treble Bleed.

P90 LP.jpg

Re: Wiring Help Needed

For the 50's mod, the pickup output should go to the center lug of the volume pot, and the outer lug would go to the switch. Other than that, everything looks ok. I'm assuming your TB is a resistor, and not a "short" as you have it drawn.

Re: Wiring Help Needed

TB for Treble Bleed. Thanks Artie, I'll try switching those.
