Wiring help...Please

J

jacksen

New member
Hello
I have this guitar with HH Invader sets pickup configuration with 3 way toggle switch and 2 vol pots + 1 tone pot
I want to remove the tone pot and 1 vol pot..so only 1 vol pot for both pups
I bought these on-on-on 4PDT and on-on DPDT to fill the other 2 holes
I think the DPDT is for the blower switch
Can you suggest anything for the 4pdt wiring..of course with the comfortable switching position LOL
(split-coil,phase,series/parallel,unusual wiring,etc...anything!)
I'm excited to try something new

Thanks a lot!

Re: Wiring help...Please

The 4PDT is essentially 2 DPDTs right next to each other and is capable of doing some pretty crazy stuff, especially when coupled with a super switch.

I have an "on/on" version in my RG that chooses inside coils or outside coils for my splits when I have the coil split push/pull on.

I have another "on/on" in my Strat build that, when coupled with the super switch, allows for out-of-phase no matter what two pickups are on at the time.

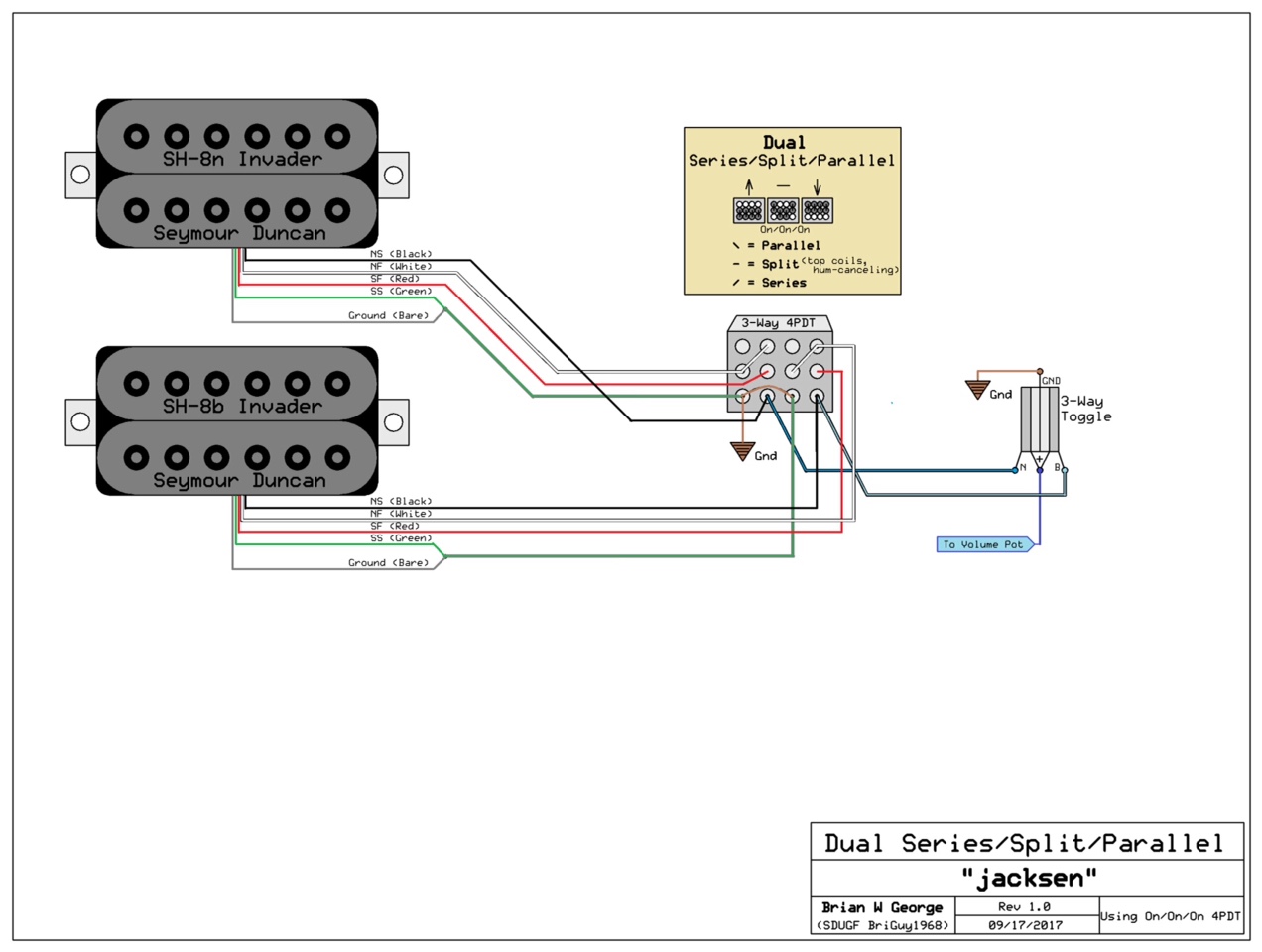

I think if I were using an "on/on/on" 4PDT, I'd do a series/split/parallel that would affect both pickups at once. Something like this:
