Wiring Les Paul need help ... Noob

[justicesanford]

So I have my guitar wired, plugged into a amp, no strings .... When my three way switch is in the treble (bridge) pickup position bridge pickup works... Controlls for that turn it on and off... When it's in the middle position both pickups work ... When it's in the rhythm (neck) position , the bridge comes in.... What did I do wrong



[beaubrummels]

Re: Wiring Les Paul need help ... Noob

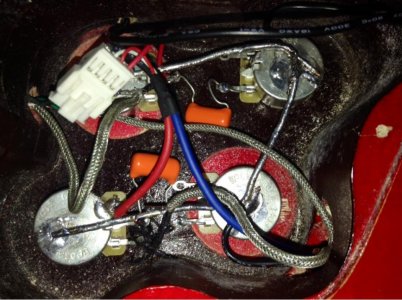

Can't see the key parts of the wires. The colors going into the white quick connect are totally different from the ones coming out going to the switch and I can't see what maps to what. I also can't see the wires from the neck volume pot.

Just a curiosity question: Why is there a quick connect to the switch? None of the components on either side of it can easily be removed to be of value.



[justicesanford]

Re: Wiring Les Paul need help ... Noob

I had a epiphone push pull wiring rip in there, but I scrapped it and kept the quick connect in there... I think it might be some of the issue



[allbutromeo]

Re: Wiring Les Paul need help ... Noob

Rip out all of the wiring related to that quick connect, download a wiring diagram from the SD site and wire it that way. Get the one for single conductor pups
