WIRING : Mini-Humbucker +Single coil sized humbucker

[stecova]

Hello,

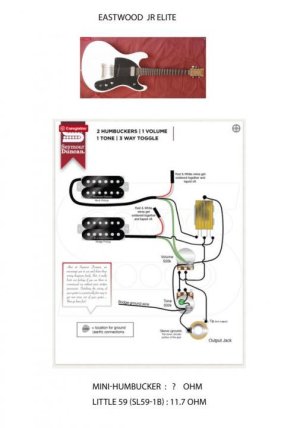

I replace the stock single-coil of my guitar by a single coil sized humbucker(little59) and I want to wire it correctly with a Mini-Humbucker
I have a 3 way switch + 1 volume + 1 tone

There is no wiring diagrams for this configuration, can I use the 2 humbuckers wiring diagram instead ?

Thanks for help



[Mincer]

Re: WIRING : Mini-Humbucker +Single coil sized humbucker

Yes! The Little 59 is wired like its big sister. You get 4 wires + bare wire. Everything should line up just fine. Let us know how this works out.



[stecova]

Re: WIRING : Mini-Humbucker +Single coil sized humbucker

@Mincer
I think I found the problem:
It is a SL59-1n (a neck PU) and not a SL59-1b (a bridge PU)
