Wiring question: blend pot for middle single coil

[pskorz]

way back when, I had a Squier super-strat H S H, standard 5 way lever, 1 vol 1 tone. I bought a JB and a 59n, and asked the guy at the store to just put in a 3-way lever and bypass the single-coil. I wanted to be able to have both humbuckers together instead of a middle single-coil.
He said, "How important is your tone control to you?" not very. "Well, I can do something special for you, if you're okay with it." Sure.

So he turned the tone control into a blend pot, so I had a H -- H guitar with only a volume control, but I could use the "tone knob" to blend that single coil in to any of the positions. I've long since parted with that guitar, but lately I've really been jonesing for that type of setup again.

Does anyone know how to wire that up?



[PFDarkside]

Here’s a diagram. To omit the tone just leave the pot off along with the wire that connects it to the volume. This shows SSS, but do the typical green = ground, black = hot, red/white together for Duncan colors.

https://www.premierguitar.com/articles/21112-three-must-try-guitar-wiring-mods?page=3



[pskorz]

Nice, thanks! so with a 2 tone knob configuration, you could still keep a master tone, or bypass it depending on the setup. Nice! thank you so much.



[PFDarkside]

That’s right! No problem, good luck with your wiring project.



[Lewguitar]

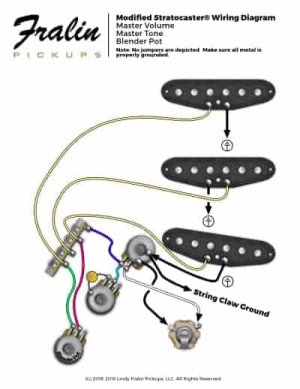

Here's how I do it. Using a no load pot works best.
