Volume / tone (treble roll off) / bass roll off / phase switch / stereo switch
This is the most unfamiliar wiring job I will have done. When I have it sorted out, I'll be using it on my 3 guitars with standard Gibson style toggle / 4 knobs - An SG Faded, Hamer Echotone (335 copy, so may skip the p/p phase switch since the p/p pot may not even fit) an an Epi 339 which has control panel access in the back.
There are no series / parallel / split options as I'll be using Triple shots on the humbucker guitar, and the other two have p90 style pickups.

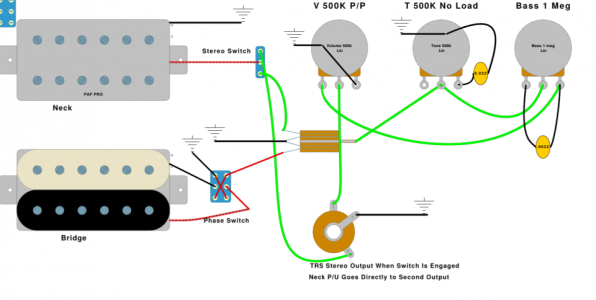

The phase switch is the p/p dpdt on the volume pot, which isn't made clear in the diagram. The 1 meg pots are reverse audio taper.
I know this is kind of overkill, but I'm doing it for fun as much as anything else.
Does anyone see any problems? Any input would be appreciated.
as used in G&L PTB circuits.
This is the most unfamiliar wiring job I will have done. When I have it sorted out, I'll be using it on my 3 guitars with standard Gibson style toggle / 4 knobs - An SG Faded, Hamer Echotone (335 copy, so may skip the p/p phase switch since the p/p pot may not even fit) an an Epi 339 which has control panel access in the back.
There are no series / parallel / split options as I'll be using Triple shots on the humbucker guitar, and the other two have p90 style pickups.
The phase switch is the p/p dpdt on the volume pot, which isn't made clear in the diagram. The 1 meg pots are reverse audio taper.
I know this is kind of overkill, but I'm doing it for fun as much as anything else.
Does anyone see any problems? Any input would be appreciated.
as used in G&L PTB circuits.
