Yet Another Question for the Wiring Gurus

M

Martian

New member
I have a 3 way rotary switch from a Squier 51 Vintage Modified Strat. I was wondering if it was possible to wire my CC to it so that I can get the three variations (series/single/parallel) of the pickup like with a DPDT on/on/on switch. And if it can be done, would you please diagram it for me. I'd really be grateful.

Re: Yet Another Question for the Wiring Gurus

Yes. I've already got the diagram for that around here somewhere. Let me look . . .

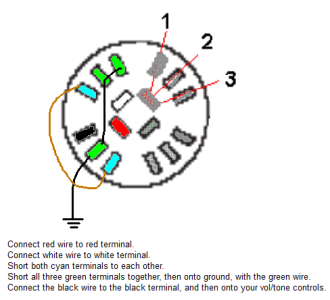

Probably not my best "art" work, but let me know if you can decipher that. If not, I can redraw it. ;)


Last edited:
Re: Yet Another Question for the Wiring Gurus

Artie,

Thank you once again, you always come through!

I am having a little bit of difficulty with it. If it isn't too much to ask, would you please redraw it?

Again, thank you so much!!

Re: Yet Another Question for the Wiring Gurus

That's a great diagram, and since it only uses half the three way switch, it could handle both humbuckers at once. I'll have to try this out in one of my Epi Les Pauls.

Re: Yet Another Question for the Wiring Gurus

DreX said:
That's a great diagram, and since it only uses half the three way switch, it could handle both humbuckers at once. I'll have to try this out in one of my Epi Les Pauls.
Click to expand...

Killer idea. 2 volumes, master tone, and this switch sounds like an awesome setup.

Re: Yet Another Question for the Wiring Gurus

Martian said:
Artie,

Thank you once again, you always come through!

I am having a little bit of difficulty with it. If it isn't too much to ask, would you please redraw it?

Again, thank you so much!!
Click to expand...

No prob. Let me see what I can whip up that might be a little more clear.

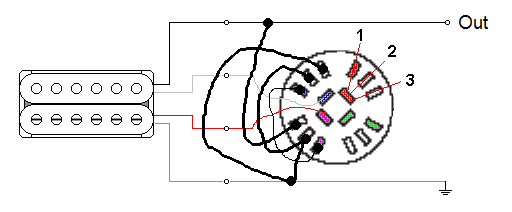

See if this helps:


Last edited:
Re: Yet Another Question for the Wiring Gurus

DreX said:
That's a great diagram, and since it only uses half the three way switch, it could handle both humbuckers at once. I'll have to try this out in one of my Epi Les Pauls.
Click to expand...

Hey DreX. I haven't seen that switch available separately. Do you know a source?
