3way switch for split coil and out-of-phase

xblue

New member

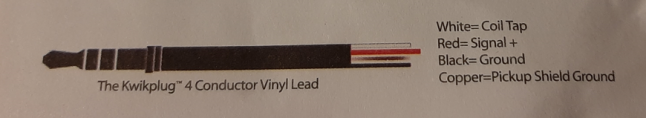

I have a GFS humbucker with these wires:

upload_2021-8-13_21-33-37.png - Click image for larger version  Name:	upload_2021-8-13_21-33-37.png Views:	5 Size:	97.3 KB ID:	6107873
wAAACH5BAEKAAAALAAAAAABAAEAAAICRAEAOw==


I would like to add a 3way switch that allows these combinations:

- Humbucker mode
- Split coil
- Split coil out-of-phase

Is it possible to do using a 3way switch?

Last edited:
While I have seen 3 way switches with 4 poles, they aren't common. I am confused about 'split coil out of phase'. Is that split, then out of phase with another split pickup?

While I have seen 3 way switches with 4 poles, they aren't common. I am confused about 'split coil out of phase'. Is that split, then out of phase with another split pickup?

I mean "split and out of phase with the other full pickup(not split)"
