5 way superswitch wiring

[DutchSailor]

I've been trying to understand this for a full two weeks and I still don't get it, even after researching the super switch.. :eyecrazy: is there anyone who does?

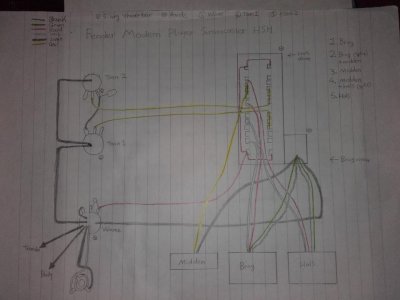

I drew the wiring diagram, I'll explain some things since it's in Dutch:

All the wire colours are as they are for real, the fizzy black line is bare and the black line is black.
- hals kant = neck side
- brug kant = bridge side (of the switch)
- midden, brug, hals = middle, bridge, neck (pickup)
- toon = tone
Also, this should be what the wires are (they are fender 3 conductor humbuckers):
- red = north start
- green = north finish + south start -> goes to ground
- white = south finish -> coil tap wire
- bare = goes to ground

It's a standard HSH guitar with autosplit of the coils in position 1 and 5.

So can anyone tell me how this wiring works? Thanks a lot in advance! :1:



[DrNewcenstein]

Re: 5 way superswitch wiring

With a standard Fender-style 5-way switch, positions 2 and 4 are automatic bridges between positions 1 and 3 and 3 and 5. These connections will always be made.

As seen here:
http://www.seymourduncan.com/support/wiring-diagrams/schematics.php?schematic=1h_1s_1h_1v_1t_5w_as


With a SuperSwitch, you have to wire those connections yourself.

Like so:
http://www.guitarelectronics.com/product/WDUHSH5L1101/WDU-HSH5L11-01.html



[Funkfingers]

Re: 5 way superswitch wiring

With a SuperSwitch, you have to wire those connections yourself.

Like so:
http://www.guitarelectronics.com/product/WDUHSH5L1101/WDU-HSH5L11-01.html

Wrong schematic. OP requires two tone controls.
