5 way switch HH question

[Arnelbrodz]

Hello there,

I have an SD Jazz and JB on my Tele, I want to change the wiring to 5 way switch for more sound options. Is there anyone out there knows the options for this HH wiring? Thanks in advance.

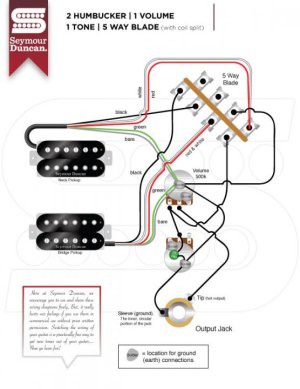

http://www.seymourduncan.com/wp-content/uploads/2015/05/2H_5WSPL_1V_1T.jpg



[Brandenburg]

Re: 5 way switch HH question

options .. look like this one has coil splits but it says that on the pic.. other options? quite a few i can think of. all depends on you imagination,need and skill wiring up a guitar IMO



[LazNovak]

Re: 5 way switch HH question

Get a Super Switch.



[PFDarkside]

Re: 5 way switch HH question

If by "options" you mean what is each position, then I see:

-Bridge HB
-Bridge HB + Neck HB
-Neck HB
-Bridge Split + Neck Split
-Bridge Split



[Brandenburg]

Re: 5 way switch HH question

Get a Super Switch.

i agree its easier to do coil splits or other mods with a 4P5T



[IMENATOR]

Re: 5 way switch HH question

Why not keeping the 3 way switch and using SD's Triple Shot or putting two push-pull pots to achieve similar options? You can look for "2 P-Rails 1 Volume, 1 Tone, 3 Way 2 push/pulls (option #2)" in the wiring diagram.

About the diagram, if you describe what you want maybe someone can provide a link to SD or any other website with the diagram to do what you are looking for. Chances are there are lots of options that wont match your needs.



[rickardgreg]

Re: 5 way switch HH question

That's what I was thinking. Just put 2 push pulls in and do a series/parallel on both pups. That, combined with using tone and volume, would give you more tone options than a 5-way, in my very non-expert opinion. Just my thought.


Sent from my iPad using Tapatalk



[Mincer]

Re: 5 way switch HH question

I wrote a blog about using a Super Switch with 2 HB. I am not sure that is what you want to do, but it is a great versatile option. Keep in mind, that for this to work, you have to flip a magnet on one humbucker.
