500t

[kie.rocking]

Evening all,

I have two Gibson V's. The 500t in one and a JB in the other.

When using the JB there is a significant volume drop.

Can anyone recommend a good pickup for heavy rock than can match the 500t volume wise and act as a good alternative to it.

Was thinking 498t but thought I'd put it out there.

Sent from my D6603 using Tapatalk



[Rex_Rocker]

Re: 500t

The 500T is going to be louder than the 498T as well.

I'm thinking Duncan Distortion or Black Winter would be a closer match output-wise.



[hamerfan]

Re: 500t

The 500T is going to be louder than the 498T as well.

I'm thinking Duncan Distortion or Black Winter would be a closer match output-wise.

I am using JBs, one Distortion and one 500t. The Distortion is outputwise near the 500t.

So my advice is to buy a Ceramic 8 magnet and swap it into the JB. Easy peasy mod.


BTW i also swapped out the side magnet of the 500t with wood stick which tamed it down a bit and made it a tad warmer than the Distortion. Just my liking.



[Aceman]

Re: 500t

Adjust the JB. Output wise it should be able to hold it's own against the 500t. It isn't THAT different.

Distortion is practically 500t.



[stratguy23]

Re: 500t

I agree with the Distortion suggestions and in fact recommend it over the 500T as "similar, but better". Ironically, to me, Distortion out-Gibsons the 500T by having a hairy edge to the tone; 500T feels a little smooth to me. But if you're happy with the 500T (it's a fine pickup), then by all means keep it.

Beyond the Distortion, we're getting into territory like the Black Winter, which I haven't tried yet, and Invader, which is cool but maybe more full-on than you want.

498T in one axe I would pit against the JB in another in terms of output and voicing.



[whatshisname]

Re: 500t

I agree with Aceman. I used a JB, and also have the stock pickups in my Vees. They're not very different.



[kie.rocking]

Re: 500t

I did some height adjustment and played them through my JMP1 preamp via recabinet 4. Whilst it wasn't as hot, it definitely held its own.

I want compare it in rehearsals next on the DSL and see how it pans out.

The JB is tried and tested so will work out.

Sent from my D6603 using Tapatalk



[treyhaislip]

Re: 500t

Adjust the JB. Output wise it should be able to hold it's own against the 500t. It isn't THAT different.

Distortion is practically 500t.

That's what I was thinking...I've used both the JB and 500T (really like both!) and didn't think one was that much different in output...something else is going on here.



[DrNewcenstein]

Re: 500t

That's what I was thinking...I've used both the JB and 500T (really like both!) and didn't think one was that much different in output...something else is going on here.

Like maybe a 300K pot in the JB and a 500K in the other?


The JB's lack of overall harshness as compared to the 500T may also be perceived as a volume drop. Giving the JB a ceramic magnet from a Custom, for example, may bring it up to that level.

A PATB-2 may work just as well, if the bridge is angled enough to align with one (since Gibson changed their bridge angle some years ago, many trem-spaced pickups align normally, though the PATB series may be the exception).



[kie.rocking]

Re: 500t

JB held is own at rehearsals today against my Explorer loaded with the 500t. The Explorer sounded heavier in tone, but matched the V with the JB volume wise.

Sent from my D6603 using Tapatalk



[Aceman]

Re: 500t

The Exploerer, with all that mass, vs the V, and the Ceramic/EQ curve on the 500t is the reason for the difference.

Drop the 500t just a touch and they should both be fine.

By the way - we need pics of these guitars!!!



[kie.rocking]

Re: 500t

That's only fair, I'll get on it.

Sent from my D6603 using Tapatalk



[kie.rocking]

Re: 500t

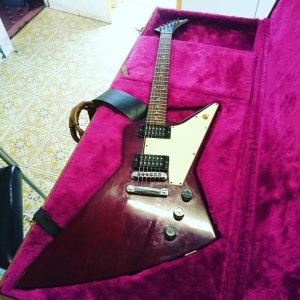

Here's the Explorer.



[kie.rocking]

Re: 500t

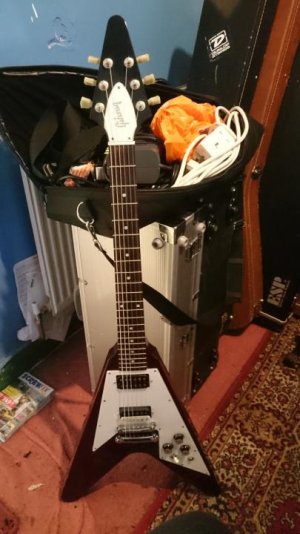

My light V with the JB



[kie.rocking]

Re: 500t

Sent from my D6603 using Tapatalk



[kie.rocking]

Re: 500t

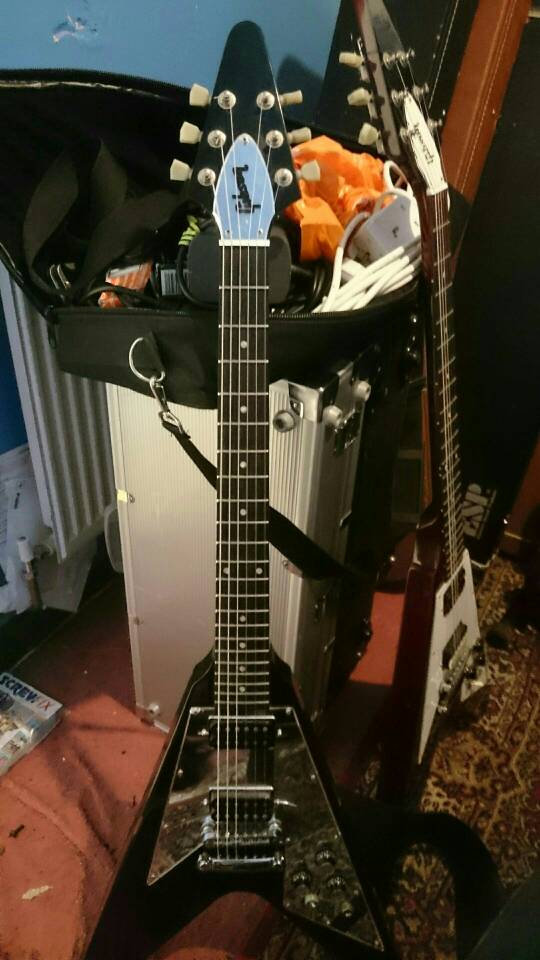

My V with the 500t

Sent from my D6603 using Tapatalk



[Rand-O-Monium]

Re: 500t

:headbang: !!!

Lerv the Blk/Mirror!



[Securb]

Re: 500t

Freaking awesome axes. Nice taste, very nice taste.



[kie.rocking]

Re: 500t

View attachment 71296

Here's the Explorer.

This one has a 500t in the Bridge.

That's only fair, I'll get on it.

Sent from my D6603 using Tapatalk

The Exploerer, with all that mass, vs the V, and the Ceramic/EQ curve on the 500t is the reason for the difference.

Drop the 500t just a touch and they should both be fine.

By the way - we need pics of these guitars!!!

Sent from my D6603 using Tapatalk



[Masta' C]

Re: 500t

D@mn, man, you've got good taste in guitars
