An old Phase 90 identification.

[Nuts]

Hello eveyone.
A few years ago I bought a used MXR Phase 90.
It didnt came with the original case, it was inside an MXR Phase 45 script logo case.

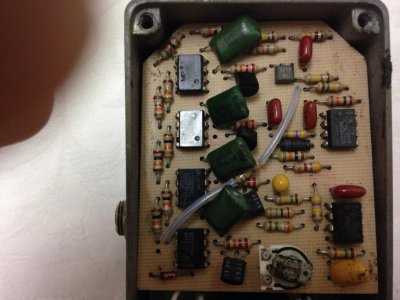

Can anyone tell me if I got the 'script' phase 90, by looking at the board ?


I replaced the capacitors and I also want to replace the 741 IC's, because I'm getting some noises.
Can anyone recommend a good IC for a phaser ?
Thanks.



[Nuts]

Re: An old Phase 90 identification.

I think I just realized, It's not the script phaser borad, it's the block logo one.
But IC's recommendations are still welcome...



[Vasshu the humanoid typhoon]

Re: An old Phase 90 identification.

The old one had 6 741 opamps from TI or National.



[Kamanda~SD]

Re: An old Phase 90 identification.

Lots of great info on parts for a phase 90 out there. do a little digging, one of the most discussed pedals out there!

In other news....love the gut shots.



[revolution]

Re: An old Phase 90 identification.

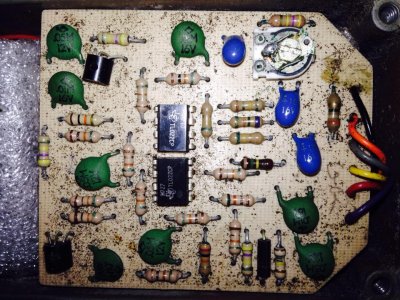

Here are the guts from my Phase 45 Script Circuit and Back, but Block Logo on pedal.
