Any cables tester helpers here? Any idea what this means?
- Thread starter ls1ashley
- Start date
PFDarkside
of the Forum
Re: Any cables tester helpers here? Any idea what this means?
I’d say the sleeve on the left is contacting the tip and sleeve on the right... but I use a multimeter.
I’d say the sleeve on the left is contacting the tip and sleeve on the right... but I use a multimeter.
L
Little Pigbacon
Guest
Re: Any cables tester helpers here? Any idea what this means?
I’m puzzled. It’s one conductor and a shield. Why light up three LEDs?
I’m puzzled. It’s one conductor and a shield. Why light up three LEDs?
PFDarkside
of the Forum
Re: Any cables tester helpers here? Any idea what this means?
The “ring” and “sleeve” are one on a T/S... so it’s probably just showing what has continuity with the sleeve connection on the left.
The “ring” and “sleeve” are one on a T/S... so it’s probably just showing what has continuity with the sleeve connection on the left.
Re: Any cables tester helpers here? Any idea what this means?
I appreciate the replies, but being a newb, I'm not sure what it means I need to do to fix this. I've made about a dozen of these George L cables and about 4 are giving me this trouble, and 8 are A-OK.
Can I supply more information to help? If I get this worked out I can finally get all my pedals hooked up and rockin'

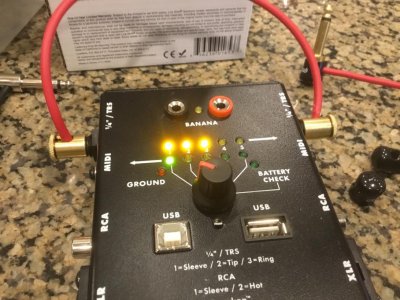

Normally, the top row has LED on the 1 and 3 position when the bottom LED is on the 1 or 3 position. When I move the bottom LED to the 2nd position the top 2nd position LED lights. That's for good cables.
I appreciate the replies, but being a newb, I'm not sure what it means I need to do to fix this. I've made about a dozen of these George L cables and about 4 are giving me this trouble, and 8 are A-OK.
Can I supply more information to help? If I get this worked out I can finally get all my pedals hooked up and rockin'
Normally, the top row has LED on the 1 and 3 position when the bottom LED is on the 1 or 3 position. When I move the bottom LED to the 2nd position the top 2nd position LED lights. That's for good cables.
Last edited:
PFDarkside
of the Forum
Re: Any cables tester helpers here? Any idea what this means?
Redo the right connector in this case being careful to keep the cable perfectly round when you insert and seat it.
Redo the right connector in this case being careful to keep the cable perfectly round when you insert and seat it.
