best low profile 5 way pickup selector?!?
- Thread starter ISHIELDS
- Start date
Artie
Peaveyologist
I've seen one in Yamaha guitars where the terminals stick out of the side rather than the bottom. But not sure if I've seen them aftermarket.

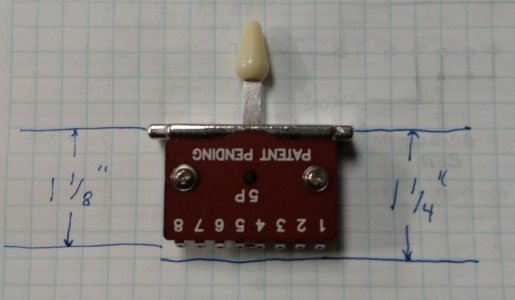

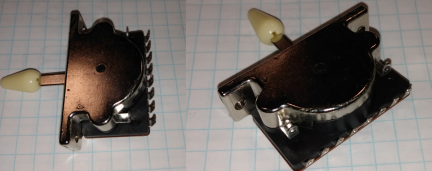

P.S. These Kaish switches are fairly low profile and good quality. They only need 1 3/16" depth.
https://www.amazon.com/Dopro-Guitar-Pickup-Selector-Plastic/dp/B07K764FN2
P.S. These Kaish switches are fairly low profile and good quality. They only need 1 3/16" depth.
https://www.amazon.com/Dopro-Guitar-Pickup-Selector-Plastic/dp/B07K764FN2
Last edited:
Always wanted to invent switches with side mounted terminals for shallow depths. I run into this problem a lot on custom builds and designs that assume an LP style 3way will do. I prefer blade if possible....the Schaller Megaswitches and Superswitches just makes wiring options fun.
Mononoaware
New member
I like the Kaisch switches, too. They feel good and handle abuse. Only downside I've found is that the "baseplate" part is a bit beefier than your average Alpha or Ibanez wafer switch, so I couldn't fit one in my Ibby S-Style.The S'es have that weird rounded plastic cover for the switch, and it's designed to handle a thinner and narrower plate.
Artie
Peaveyologist
Yup. The reason I have one sitting around is because I bought it for a carved-top Schecter that has the same issue.
that is SO CLOSE to what i need. is there room on the other side for the lugs to bend down just a little? i am 1 1/8" cavity depth; if i could bend the lug a little, to keep the solder from protruding past 1 1/8", i think i could make that work
excellent!
Artie
Peaveyologist

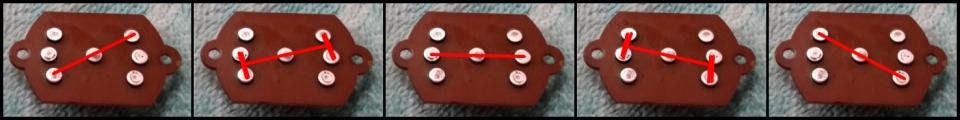

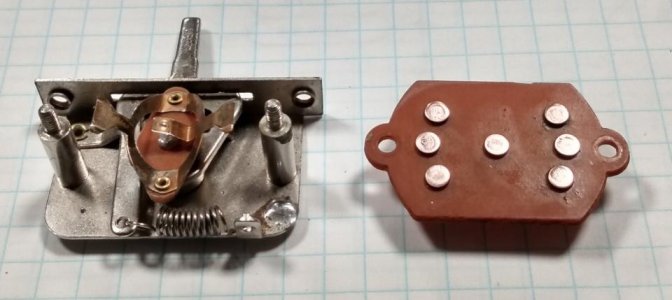

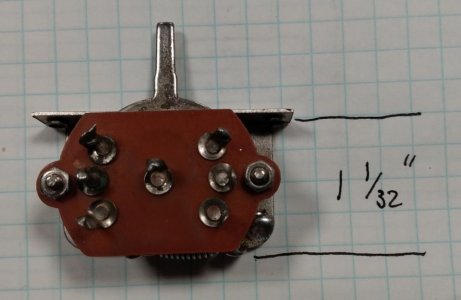

I have an oddball 5-way that I removed from a customers guitar that needed a superswitch. I think this came from a Washburn, but it's been a long time ago. The switch is only 1 1/32" deep, and the terminal come out of the side. One of the cool things about this switch is that you can simply remove two 3/16 (5mm) nuts, and have full access to the contacts so that they can be burnished or polished. I've polished these and treated them with Deoxit. This thing could last forever.
If you live in the US, shipping, with a "bubble" envelope, would probably only run $5 - $6. Round it up to $10, (to cover a beer :beerchug
, and it's yours. Remember, it's a "used" part. Just a thought.
If you live in the US, shipping, with a "bubble" envelope, would probably only run $5 - $6. Round it up to $10, (to cover a beer :beerchug
, and it's yours. Remember, it's a "used" part. Just a thought. I have an oddball 5-way that I removed from a customers guitar that needed a superswitch. I think this came from a Washburn, but it's been a long time ago. The switch is only 1 1/32" deep, and the terminal come out of the side. One of the cool things about this switch is that you can simply remove two 3/16 (5mm) nuts, and have full access to the contacts so that they can be burnished or polished. I've polished these and treated them with Deoxit. This thing could last forever.
If you live in the US, shipping, with a "bubble" envelope, would probably only run $5 - $6. Round it up to $10, (to cover a beer :beerchug
that is very cool!! and thanks so much for your offer; if neither of the switches i ordered work out, i may take you up on your offer!
i do have a question regarding that switch: it appears to have 7 lugs, i am assuming that it is akin to an 8 lug with the common lugs bridged....do i understand that correctly?
thanks!

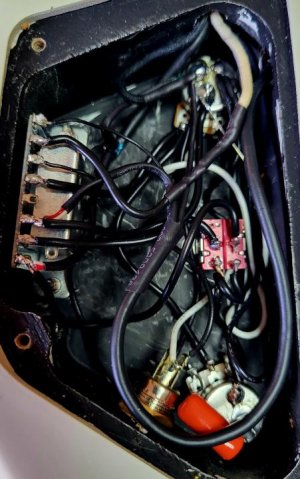

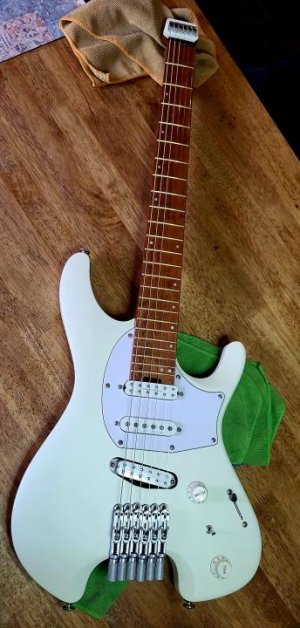

Success! I went with the alpha 5 way. Wired in a ibanez hsh 5 way style with a split to the inner coils of the humbuckers. Not my finest work, by far; this tiny cavity was really difficult to work in....the instrument sounds amazing now; super stoked. Thanks to everyone for your input; it really helped me get this sorted
