ChAoZ - Hitman

[kramersteen]

Re: ChAoZ - Hitman

I never thought of putting the nail down through a fret slot before, I always struggle and hammer one into the neck, nip it off, align it and push it down. But i imagine this method would be safer and easier. And you can remove it after the fact.

Why is the nail so big though? haha



[ChAoZ]

Re: ChAoZ - Hitman

Why is the nail so big though? haha

It's only a 2mm panel pin - I agree it looks like it could hold someones imaginary friend on a wooden structure



[ChAoZ]

Re: ChAoZ - Hitman

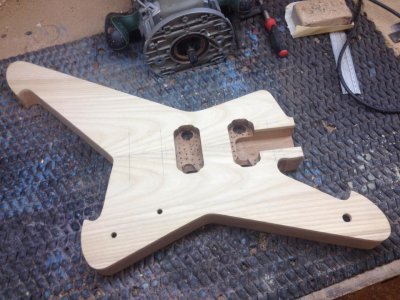

Humbucker routes done ,I have some active pickups from a big USA manufacturer to go in it - does Seymour Duncan sponsor builders as well as players?



[ChAoZ]

Re: ChAoZ - Hitman

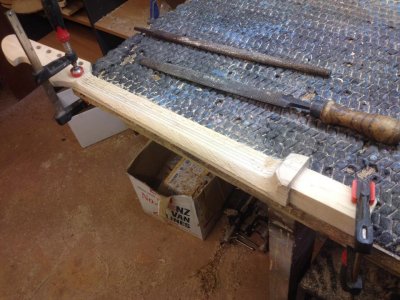

Started shaping the back of the neck ,this will need to bo done before the neck is glued into the body
Tapers from 20.5mm at the nut end to 22.5mm near the heel ,volute and heel taking shape too



[ChAoZ]

Re: ChAoZ - Hitman

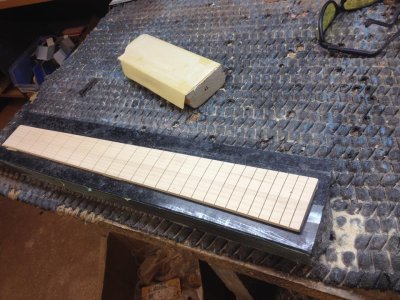

Radiused the fretboard to 17" and finalised the fret slot depth



Started carving the rear profile



[ChAoZ]

Re: ChAoZ - Hitman

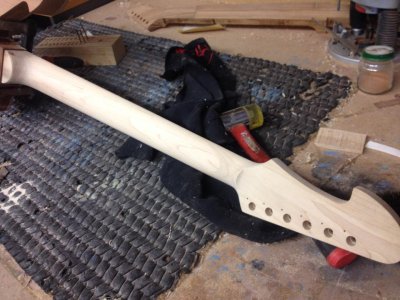

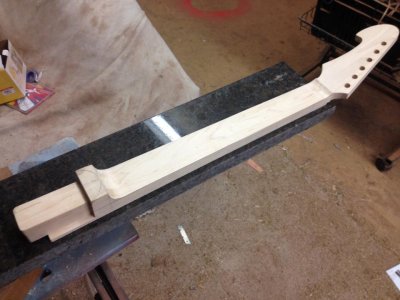

Finished carving the neck

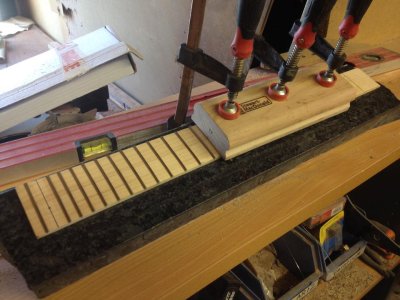

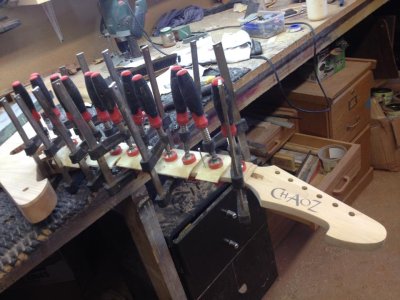

Second lot of frets are in ,clamped overnight while the epoxy sets

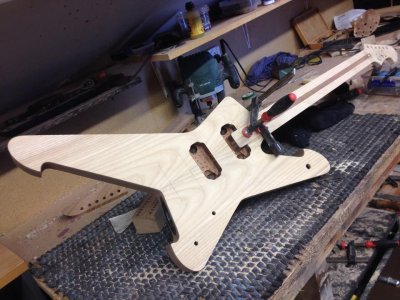

Gluing the neck into the body - really making good progress now



[Guitaraxz]

Re: ChAoZ - Hitman

Finished carving the neck

View attachment 67768

Second lot of frets are in ,clamped overnight while the epoxy sets

View attachment 67769

Gluing the neck into the body - really making good progress now

View attachment 67770

Great carving, great work on the tuner holes (wider on the bottom and evenly spaced), great epoxy gluing for the frets.

I like the body a lot, but I love the headstock. This is how guitars shuld be made; original.



[ChAoZ]

Re: ChAoZ - Hitman

Gluing on the fretboard



[kramersteen]

Re: ChAoZ - Hitman

Great work as always.



[ChAoZ]

Re: ChAoZ - Hitman

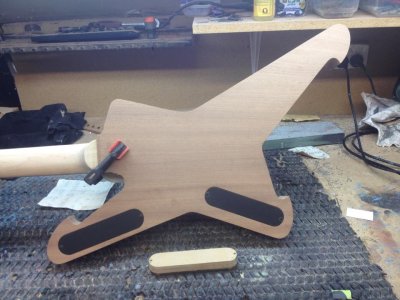

Cavity covers made



[emilio]

Re: ChAoZ - Hitman

Taht is looking great!! Thanks for sharing man.



[treyhaislip]

Re: ChAoZ - Hitman

Finished carving the neck

View attachment 67768

Second lot of frets are in ,clamped overnight while the epoxy sets

View attachment 67769

Gluing the neck into the body - really making good progress now

View attachment 67770

Gluing on the fretboard

View attachment 67791

Cavity covers made

View attachment 67816

I wish I was as cool as you! Love the logo btw!

Looks like an awesome guitar, can't wait to see the finished product! :headbang:



[Rand-O-Monium]

Re: ChAoZ - Hitman

:headbang:



[ChAoZ]

Re: ChAoZ - Hitman

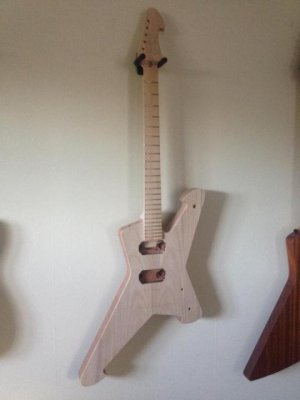

Got the last few frets in , cleaned up the heel to body transition, routed the neck tenon where it extends into the pickup cavity



[BloodRose]

Re: ChAoZ - Hitman

Wow!! Looking amazing!!



[Will S-T]

Re: ChAoZ - Hitman

I'm completely blown away by the craft of the builder and his design, magnificent!

Oh, and congrats on the All Blacks win, deserved



[ChAoZ]

Re: ChAoZ - Hitman

I'm completely blown away by the craft of the builder and his design, magnificent!

Oh, and congrats on the All Blacks win, deserved

I'm humbled by your praise - it makes the many hours invested all worthwhile

I'm also sure you will avenge your country on Thursday at the Gabba



[ChAoZ]

Re: ChAoZ - Hitman

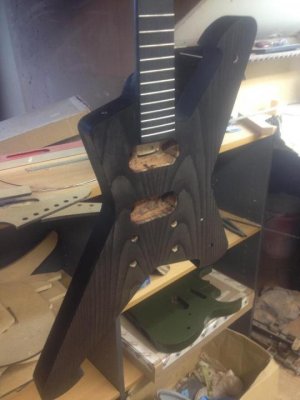

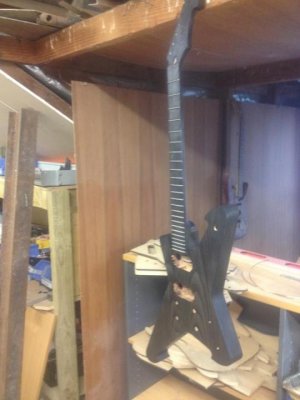

Stained the whole lot with black wood dye



Rubbed in a coat of oil with the rag I used to apply the dye



[Will S-T]

Re: ChAoZ - Hitman

This just keeps getting better each stage. A really nice surprise the "All Black" finish,
will we see a "Silver Fern" on there somewhere? Maybe on the headstock or truss rod cover?



[Nacho8807]

Re: ChAoZ - Hitman

Stained the whole lot with black wood dye

View attachment 67996

Rubbed in a coat of oil with the rag I used to apply the dye


View attachment 67997

I will forever return to this forum, so long as your builds grace it's pages. Excellent work, sir!
