charvel san dimas hh wiring

[mapletop1]

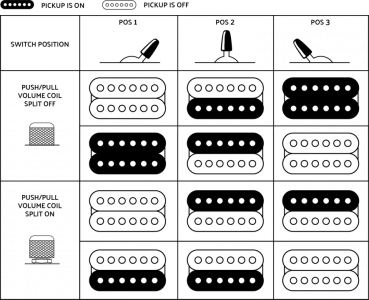

i bought a wiring harness from a charvel san dimas HH it has the 3 way blade switch,tone ,volume with a push pull all wired up.the pickups are 59 in neck jb in bridge.i want the pickup switching in this diagram.



[hamerfan]

This can't be done with every switch. Look into the schematic of this wiring to determine the right switch.



[mapletop1]

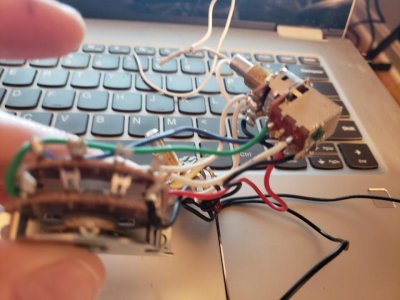

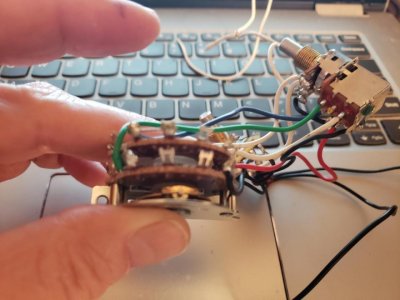

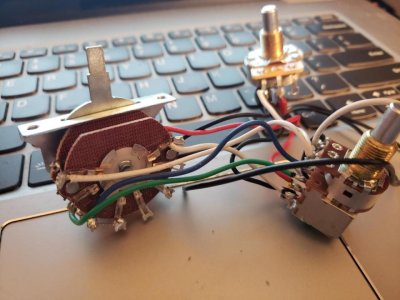

its the wiring harness from one of these guitars why wouldnt it work?its all wired up but i dont know where the wires go from the pickups



[Blille]

A double wafer three way switch is unusual, which is likely why you’re not getting a lot of feedback. The only one I can think of is the Goldo one https://www.goeldo.de/en/luthier-s-...witches/7145/goeldo-double-wafer-3-way-switch

Did you try to email Charvel? They have pretty good customer support. Just ask them that you want to rewire the guitar to the original configuration and that you’d like a wiring schematic.



[GuitarDoc]

A double wafer three way switch is unusual, which is likely why you’re not getting a lot of feedback. The only one I can think of is the Goldo one https://www.goeldo.de/en/luthier-s-...witches/7145/goeldo-double-wafer-3-way-switch

Did you try to email Charvel? They have pretty good customer support. Just ask them that you want to rewire the guitar to the original configuration and that you’d like a wiring schematic.

Not so unusual...Oak Grigsby makes a double wafer 3-way switch with 8 lugs which is pretty common. That Goldo one has 16 lugs, not the same switch.



[Blille]

Not so unusual...Oak Grigsby makes a double wafer 3-way switch with 8 lugs which is pretty common. That Goldo one has 16 lugs, not the same switch.

Fair enough. I don’t have experience with it, hopefully someone else does or Charvel can help.



[Blille]

[mention]Mincer [/mention] this looks like a dupe of the other thread



[Mincer]

[mention]Mincer [/mention] this looks like a dupe of the other thread

2 different people? Weird...



[Blille]

[mention]Mincer [/mention] this looks like a dupe of the other thread

It’s the same the other was a revived zombie thread that was bumped by the OP of this one.



[Mincer]

It’s the same the other was a revived zombie thread that was bumped by the OP of this one.

Oh weird. Now there is info in both threads.
