Custom Wiring Switch?!

[merseymale]

Probably the least invasive way is just to use push-pulls to defeat the tone pot and or the volume pot.

I'll knock up a drawing or two shortly.

Look forward to seeing it, thanks



[Artie]

If what you want is:

1. Bridge (no vol, no tone)
2. Bridge w/ vol/tone
3. Neck (vol only)

Then it's easy to do with a standard Tele 3-way if you don't mind using one of these volume controls:

https://guitarelectronics.com/alpha-250k-audio-taper-dual-ganged-stereo-control-pot-for-guitar-bass/

The fact that it's dual-ganged will be transparent to you, the user. I can do the diagram tomorrow. I'm not on my "graphics" computer now.



[Artie]

So, you have several options. (As others have suggested.) If you want to go with your original wiring scheme, you can either use the ganged pot that I linked to above. Or you could use a 3-hole Tele plate, and have a separate bridge/neck volume pot.

https://reverb.com/item/18572329-92...mIpL2iLViOlt0EZSDFSONCgsKQLy1hccaAhfmEALw_wcB

Or, you could do a Superswitch with the ends blocked. I've actually been working on that for awhile. It's pretty simple and makes a nice "short-throw" 3-way.

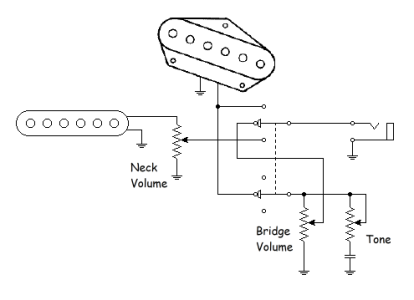

Here's the basic idea for doing the 2-volume method. And remember, that with the ganged pot, the "dual" thing is transparent to you in operation.



[Artie]

P.S. (Can't edit that post.) Using a no-load tone pot eliminates the need for the 2nd neck volume pot.



[merseymale]

P.S. (Can't edit that post.) Using a no-load tone pot eliminates the need for the 2nd neck volume pot.

T H A N K S!!
