Fender HH S1 with Hot Rod Humbucker Wiring

[Stepping3D]

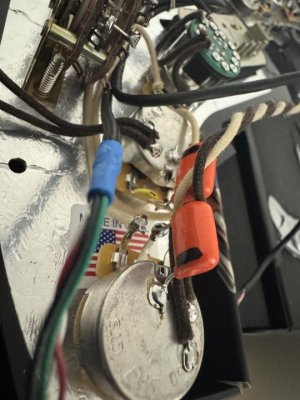

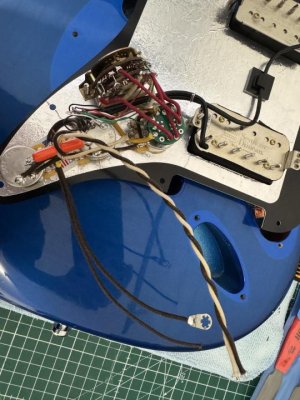

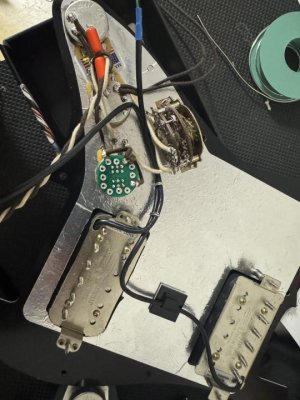

Hey all, quick update on the progress so far. All the parts have arrived but I’ve been short on time so I moved straight to assembly, soldering etc. here’s a couple of quick photos with this afternoons progress.



[Artie]

Looks good. And love the blue, too. Is that Kapton tape under the saddle screws?



[Stepping3D]

Hi ArtieToo, thanks! Even though this one has some dings and marks I just love the colour and it’s a really dense cut of Alder which I like as well… yes, kapton under the screws, it seems to last through multiple adjustments… I get OCD about stuff sometimes.

Edit: Preliminary tap tests suggest all the wiring is correct per the last schematic. I just need to put some strings on tomorrow after work and properly check everything sounds in phase etc.



[Stepping3D]

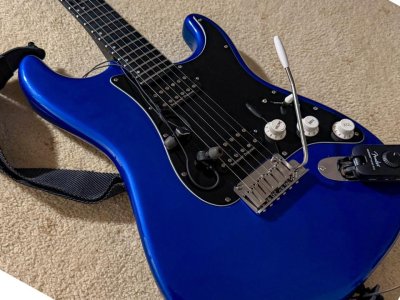

CONFIRMED WORKING!! Thanks ArtieToo for all your help and encouragement! I love this setup so much and these pickups are just so meaty, for want of a better expression… I ended up putting a TB-15 in the bridge instead of the SH-4 and I’m really happy I did… anyway I’m stoked.



[Mincer]

Wow! That is beautiful!



[jeremy]

looks great! glad you got it working. we are lucky to have artie here, hes helped so many people over the years!



[Artie]

Thanks, but I didn't do much on this one. Stepping figured most of it out himself. (Which is cool.)

Beautiful Strat.
