Help for Nazgul/Sentinent Wiring with ep1111 3way switch

[Testerer666]

Hello,

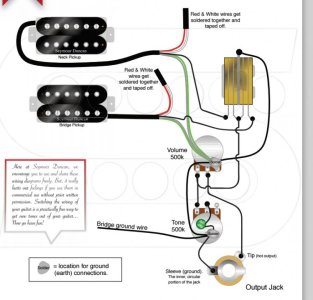

I need some help please .... hope you can help me with this wiring ( https://docs.google.com/gview?embed...om/wp-content/uploads/2016/05/2H_3G_1V_1T.pdf )




Nothing special so far, but I have a 3way switch like this



So... can someone "translate" the above wiring for "my" switch ???

cheerz
Uwe



[beaubrummels]

Re: Help for Nazgul/Sentinent Wiring with ep1111 3way switch

Wire C and D like the "3-way mini-toggle on-on-on" as seen in this drawing, and connect the C+D center lugs to the master volume. Forget all the other switch lugs.



[Testerer666]

Re: Help for Nazgul/Sentinent Wiring with ep1111 3way switch

Thanks a lot !!!!
