Help Wiring?

[ToreyCMoore]

Alright, I need to know how to wire a set of Duncan Hot Rails, into a B.C. Rich Warlock, The pickups it had in it were crap, but my problem is, the wiring diagram for the hot rails show it running through 4 pots, How would I wire them into 2 pots?
Thanks in advance.



[Funkfingers]

Re: Help Wiring?

Welcome to the forum.

Which exact model of Warlock do you have? What control layout? How many original pickups?



[ToreyCMoore]

Re: Help Wiring?

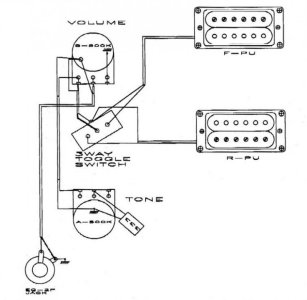

It's got 2 humbuckers, It's a bronze series, Thats the wiring diagram for the factory pickups



[Funkfingers]

Re: Help Wiring?

Have you offered up a Seymour Duncan Hot Rails replacement pickup for Stratocaster to the humbucker-sized pickup cavities of the B. C. Rich?



[AlexR]

Re: Help Wiring?

Hot goes to the switch, red/white soldered & taped, green/bare to earth (back of pot usually).



[Adieu]

Re: Help Wiring?

Not sure about colour codes (though he probably knows what hes saying), but that surely is the right idea.... Multiple volumes / tones = pickups to their respective pots, pots to switch wiring... For master volumes and tones, those sit after the switch in the schematic, affecting whichever pickup the switch connects to them - hence, wire hots to switch



[GuitarDoc]

Re: Help Wiring?

Follow this diagram...

http://www.seymourduncan.com/support/wiring-diagrams/schematics.php?schematic=2h_1v_1t_3w



[KnifeR]

Re: Help Wiring?

just white and red together
and black is hot - to the 3 way pin.
green is ground - to some ground place (example: housing of 3 way switch, or pots).

Here you have a color coding:
http://www.seymourduncan.com/support/wiring-diagrams/schematics.php?schematic=color_codes
