HH + 5-way Super switch + 3PDT. I need help!!!
- Thread starter Lynx1975
- Start date
BriGuy1968
New member
Re: HH + 5-way Super switch + 3PDT. I need help!!!
Hi Lynx1975, and welcome to the forum!

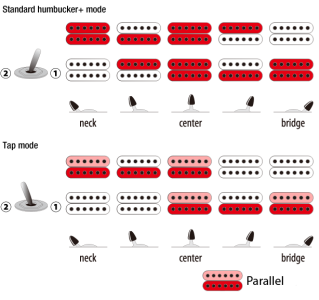

While the setup you’re asking for is certainly doable, there’s no way to do it with a regular Strat-style switch. You’ll need a 5-way super switch to give you the basic switching options. Also, which type of mini switch do you have... a 3PDT or a 4PDT mini? I haven’t worked it all out yet, I suspect that you’ll need it to be a 4PDT.
I can come up with a diagram for you, but I’ll need to have this clarification.
Hi Lynx1975, and welcome to the forum!
While the setup you’re asking for is certainly doable, there’s no way to do it with a regular Strat-style switch. You’ll need a 5-way super switch to give you the basic switching options. Also, which type of mini switch do you have... a 3PDT or a 4PDT mini? I haven’t worked it all out yet, I suspect that you’ll need it to be a 4PDT.
I can come up with a diagram for you, but I’ll need to have this clarification.
Re: HH + 5-way Super switch + 3PDT. I need help!!!
Many thanks for the help!
I have a Super Switch!
I have both 3PDT and 4PDT ON-ON (not yet installed on the guitar). I plan to install only one of them.
... and I apologize in advance, English is not my first language.
Many thanks for the help!
I have a Super Switch!
I have both 3PDT and 4PDT ON-ON (not yet installed on the guitar). I plan to install only one of them.
... and I apologize in advance, English is not my first language.
Last edited:
BriGuy1968
New member
Re: HH + 5-way Super switch + 3PDT. I need help!!!
Great! I’ll see what I can come up with for you. It might take a couple of hours.
Great! I’ll see what I can come up with for you. It might take a couple of hours.
Re: HH + 5-way Super switch + 3PDT. I need help!!!
Hi BriGuy1968! I JUST Bought Billy Gibbins Red Devil Mini Humbuckers for my Strat Pro. I've got the 3 250K POTS, 5 Way Super Switch. Adding a 3PDT or 4 PDT (whichever you suggest). What would be the best suggested wiring to get the most tones? I can follow schematics and solder ... no problem with that! I get messed up wiring a guitar figuring out the custom wiring. I don't know why I draw a blank with that! THANK YOU, Chuck M
Hi BriGuy1968! I JUST Bought Billy Gibbins Red Devil Mini Humbuckers for my Strat Pro. I've got the 3 250K POTS, 5 Way Super Switch. Adding a 3PDT or 4 PDT (whichever you suggest). What would be the best suggested wiring to get the most tones? I can follow schematics and solder ... no problem with that! I get messed up wiring a guitar figuring out the custom wiring. I don't know why I draw a blank with that!
THANK YOU, Chuck M
Last edited:
BriGuy1968
New member
Re: HH + 5-way Super switch + 3PDT. I need help!!!

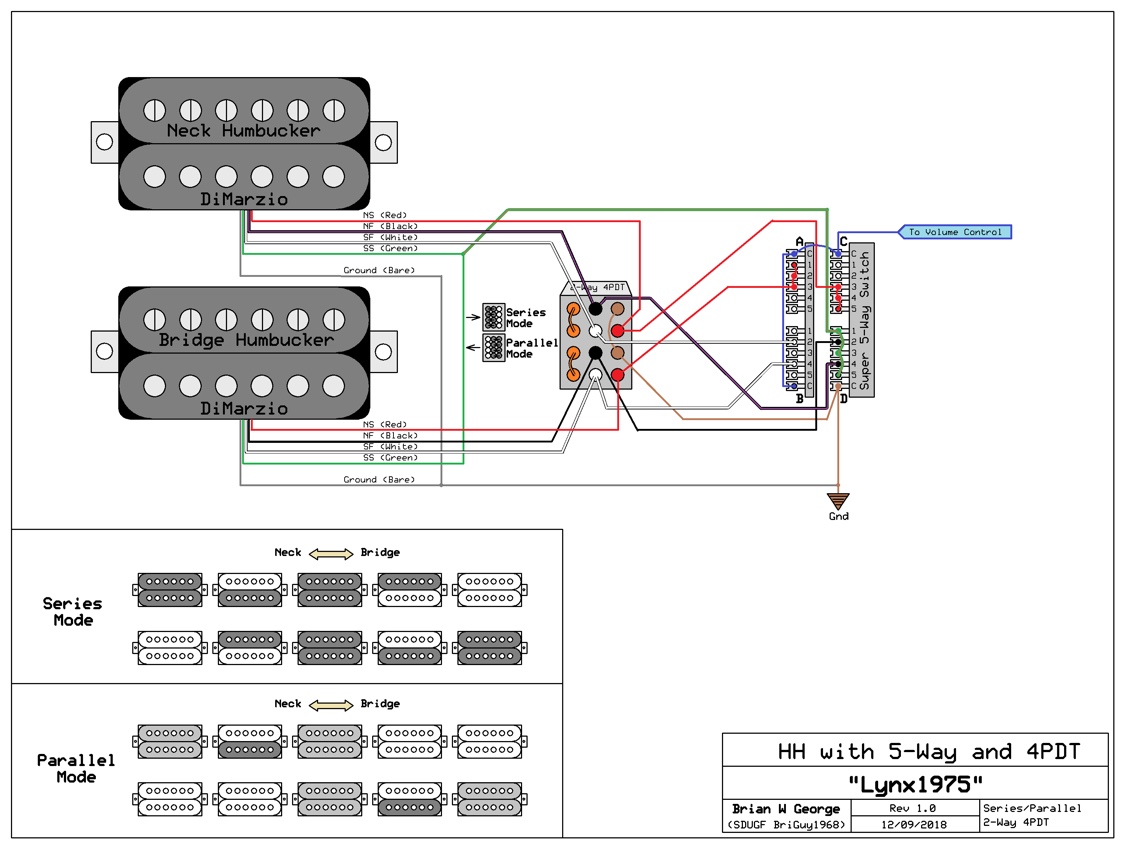

Okay Lynx1975... try this out:
If you have any questions, just ask... otherwise enjoy it and let us know how it works! [emoji41][emoji1303]
Okay Lynx1975... try this out:
If you have any questions, just ask... otherwise enjoy it and let us know how it works! [emoji41][emoji1303]
BriGuy1968
New member
Re: HH + 5-way Super switch + 3PDT. I need help!!!
Hi Chuck... you’re asking kind of a loaded question!
What do you WANT it to do?
Hi BriGuy1968! I JUST Bought Billy Gibbins Red Devil Mini Humbuckers for my Strat Pro. I've got the 3 250K POTS, 5 Way Super Switch. Adding a 3PDT or 4 PDT (whichever you suggest). What would be the best suggested wiring to get the most tones? I can follow schematics and solder ... no problem with that! I get messed up wiring a guitar figuring out the custom wiring. I don't know why I draw a blank with that!
Hi Chuck... you’re asking kind of a loaded question!
What do you WANT it to do?
BriGuy1968
New member
Re: HH + 5-way Super switch + 3PDT. I need help!!!
Lol... no big secret. It’s a freeware program called ExpressSCH. You have to make your own components, and it only does black & white. I color it with Microsoft Paint.
Thank you very much!!!
My only question is, if it is not a secret, in which software did you make the drawing of the electronic circuit?
Lol... no big secret. It’s a freeware program called ExpressSCH. You have to make your own components, and it only does black & white. I color it with Microsoft Paint.
BriGuy1968
New member
Re: HH + 5-way Super switch + 3PDT. I need help!!!
I could probably come up with something for you, Chuck, but it wouldn’t be until tomorrow night. However, this diagram (by Seymour Duncan) will do everything you’re asking for with just a standard Strat-style 5-way and a push-pull (or a 2-way DPDT). If for some reason it won’t work for you, just let me know and I’ll come up with something else.
https://docs.google.com/gview?embe.../uploads/2016/05/SCHSCHSCH_5W_1Vpp3SPL_2T.pdf
Sorry! I want the humbucker sound and also grab the single strat pickup tones as well. 5 tones for the humbucker, then 5 tones from 1/2 humbuckers. I don't think I'm wording it correctly. I hope I got you close enough!
I could probably come up with something for you, Chuck, but it wouldn’t be until tomorrow night. However, this diagram (by Seymour Duncan) will do everything you’re asking for with just a standard Strat-style 5-way and a push-pull (or a 2-way DPDT). If for some reason it won’t work for you, just let me know and I’ll come up with something else.
https://docs.google.com/gview?embe.../uploads/2016/05/SCHSCHSCH_5W_1Vpp3SPL_2T.pdf
