Nazgul/Sentient with a push/pull split?

[BeyondAntares]

Sorry for the obvious question but besides the blog post I couldn't find the wiring diagram for dual humbuckers with a push pull pot.

I have a Solar E2.7 and I'd like to swap out the Duncan solar's with a Nazgul/sentient combo. I'd also like to upgrade the pots to 500k ones with a push pull and keep the 3 way selector.

Some questions I had were:

1. Where can I find the push pull pot wiring diagrams on the Seymour Duncan website?

2. Are the additional split coil options worth it or does the pickups not clean up as well?

3. Would using 1Mega Ohm be a better for more clarity or would it sound too brittle?

Thanks in advance for the help



[Mincer]

You can always find diagrams here.

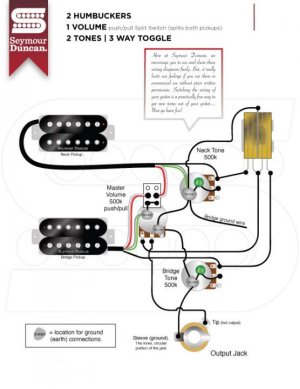

500k pots would work well for those pickups. The diagram below will split both pickups with one push/pull pot. Splitting a combo like the Nazgul/Sentient would sound pretty good for cleaner stuff.



[weepingminotaur]

I have this set in a guitar and they split well. The Sentient especially.



[BeyondAntares]

Thanks Mincer and weepingminotaur
