Need expert advice: Noob installing Seymour Duncan w/coil split into a PaulReedSmith

[GrandAlchemist]

This is my first pickup wiring project, so bare with me...

I put in Seymour Duncan sh-16 in bridge and 59 in neck.

Replacing stock PRS standard 22 dragon ii's.



My guitar has 3 way switch, 1 volume 1 tone and a push-pull for coil split.

I am using 4 wire version of both pickups.

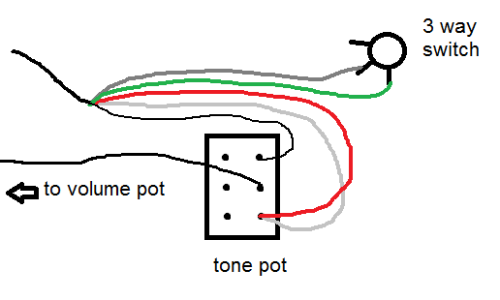

This is what I have done so far for the bridge (neck is still un-wired)


Light grey = white wire
Dark grey = bare wire



This makes sound... and as far as I can tell the volume/tone works and the coil split maybe works (the output is reduced for sure)


I have a couple questions on this:

1) Did I wire this up correctly?
2) Are my pickups going to be "out of phase" because I'm using the stock PRS electronics?
3) How do I test if coil split is set up properly?




Thanks and sorry for all the questions!



[Funkfingers]

Re: Need expert advice: Noob installing Seymour Duncan w/coil split into a PaulReedSm

In your drawing, you have illustrated the green and bare wires as both going to the selector switch. Unfortunately, you have not illustrated all of the contact points of a Switchcraft type selector switch. It is difficult to visualise what you have done without a better drawing or a photograph.

For push-pull coil splitting, only the conjoined red/white conductors need to the DPDT switch. The overall ground for the pickup can be permanently connected to ground on a pot chassis.

EDIT - The basic circuit for which you are aiming looks like this. http://www.seymourduncan.com/support/wiring-diagrams/schematics.php?schematic=2h_1v_1t_3w_1pp except that PRS adds a treble bypass network across two terminals of the volume control.
