No sound in positions 2 and 4 when using superswitch in strat

A

alphadog808

New member
Hi guys,
I'm wiring up my strat with a super switch and 2 humbuckers(one SD, one Dimarzio) and I'm noticing that I don't get anything on positions 2 and 4, which should be bridge and neck split. I was following a diagram posted up on this site from a while back, which, btw, has some good stuff in there!

https://forum.seymourduncan.com/foru...ng#post4536870

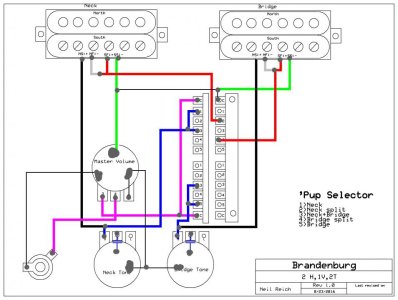

The diagram I'm trying to use is the, "Brandenberg" which is this one...
super switch.jpeg - Click image for larger version Name: super switch.jpeg Views: 0 Size: 124.5 KB ID: 6099776

Was hoping someone might know why I'm having this problem? Everything else seems to be working fine. I feel like I missed just one solder or two...Note, for the Dimarzio I connected the black and white together instead of red and white for SDs.

Thanks!

Yep, there's nothing going to the output in positions 2 & 4. Try this:

Brandenberg Corrected.jpg

It's late in the evening here and I'm a bit tired so I hope that I've not forgotten anything but normally, it should work.

Thanks Frog! I'll give it a shot and see. Strange-the person who posted it didn't say it didn't work, in fact, I kind of want to say it did...I'll try it and report back. Thanks!!
