Partial Split with a phase switch in the circuit.

[A_Zed]

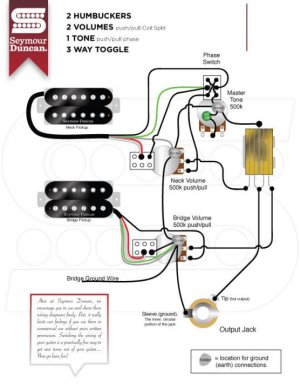

Hello to the brains trust from a first time poster. I have a build in that I'll be using a SD Hot Rod set and I'm focusing on using the "2H_3G_2VppSPL_1TppPH" diagram. So it's:

• 2 Humbuckers
• 2 Volume (push/pull Coil Split)
• 1 Tone (push/pull phase)

I wish to add partial split resistors into the mix and it's a piece of cake for the bridge pot in that the resistor goes on the ground point and the upper lug.

However, on the neck pot, that same lug jumpers to the tone pot push/pull for phase selection. Where would the resistor go for this section?

Thanks in advance.

AZed



[Artie]

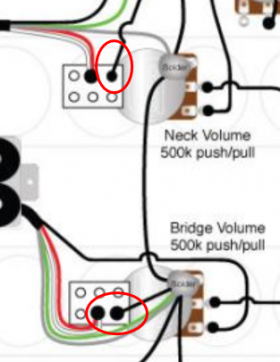

Simply put the resistor in between the upper lug, and the black lead wire on both. The phase switch doesn't really affect anything.
