80's_Metal
Underglazed Hair Metalologist
Re: Passive Guitar Mods
Killswitch is a lot of fun
Killswitch is a lot of fun
Passive Guitar Mods
- Thread starter TheMadGypsyBaron
- Start date
guitarSQUIRELL
New member
Re: Passive Guitar Mods
Have you seen or used the Humbucker mounting ring that has the built in tuner made by shadow? Looks pretty sweet. I thought about trying one, but wanted to see if anyone had used one on for a mod yet.
Have you seen or used the Humbucker mounting ring that has the built in tuner made by shadow? Looks pretty sweet. I thought about trying one, but wanted to see if anyone had used one on for a mod yet.
guitarSQUIRELL
New member
Re: Passive Guitar Mods
Ok, where were you able to find a kill switch that was a NORMALLY CLOSED like that? I have looked all over the place and havent been able to find one thats Normally Closed
Killswitch is a lot of fun
Ok, where were you able to find a kill switch that was a NORMALLY CLOSED like that? I have looked all over the place and havent been able to find one thats Normally Closed
EDX
New member
Re: Passive Guitar Mods

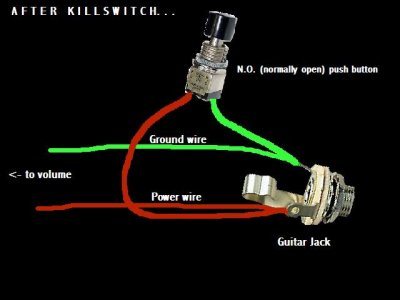

the better way to wire a killswitch is with a normally open switch (hear me dude, i'm next to graduate as an electronic tech) then instead of interrupting your signal, wich causes ground buzz to go directli to the output, you wire the switch to short it to ground (electrically is the same as the vol pot on 0) you will achieve full silence plus is easier
the better way to wire a killswitch is with a normally open switch (hear me dude, i'm next to graduate as an electronic tech) then instead of interrupting your signal, wich causes ground buzz to go directli to the output, you wire the switch to short it to ground (electrically is the same as the vol pot on 0) you will achieve full silence plus is easier
blueman335
Mojo's Minions
Re: Passive Guitar Mods
Never heard that name before. I think Coil Swap Mod is preferable for refined society.
Never heard that name before. I think Coil Swap Mod is preferable for refined society.
EDX
New member
Re: Passive Guitar Mods
blueman check this https://forum.seymourduncan.com/sho...r-vernacular&p=3819659&viewfull=1#post3819659
blueman check this https://forum.seymourduncan.com/sho...r-vernacular&p=3819659&viewfull=1#post3819659
guitarSQUIRELL
New member
80's_Metal
Underglazed Hair Metalologist
Re: Passive Guitar Mods
Ebay, there's a billion of them. I bought 2...they both sucked, but mounted easily.
I bought this one, its a plastic pin that physically moves the connections apart, works like a dream. But I had to get creative on how to mount it.... I think it was like 9 bucks?
Ebay, there's a billion of them. I bought 2...they both sucked, but mounted easily.
I bought this one, its a plastic pin that physically moves the connections apart, works like a dream. But I had to get creative on how to mount it.... I think it was like 9 bucks?
guitarSQUIRELL
New member
Re: Passive Guitar Mods
I will have to ask my cousin who owns a auto audio shop to get me one. Gonna want to put one in this project I'm doing. Never have seen anything wired that way, but it makes sense.
I will have to ask my cousin who owns a auto audio shop to get me one. Gonna want to put one in this project I'm doing. Never have seen anything wired that way, but it makes sense.
Demanic
PenultimateTone Member
Re: Passive Guitar Mods
Haven't tried the ring with the built in tuner. I figure I'll just leave that on the board and worst come's to worst, since I've been using tuners for years, I've kind of trained myself as to when a particular string is close, and then I can just tune the rest of them to it. Though I do hate it when the G is finicky.
Haven't tried the ring with the built in tuner. I figure I'll just leave that on the board and worst come's to worst, since I've been using tuners for years, I've kind of trained myself as to when a particular string is close, and then I can just tune the rest of them to it. Though I do hate it when the G is finicky.
guitarSQUIRELL
New member
Re: Passive Guitar Mods
G. I seem to have more trouble with either the High E or the D most of the time. Could possibly be an intonation issue. Just have to do a good run through of my guitar and check all the little stuff I guess.
G. I seem to have more trouble with either the High E or the D most of the time. Could possibly be an intonation issue. Just have to do a good run through of my guitar and check all the little stuff I guess.
DanjaBellza
New member
Re: Passive Guitar Mods
currently down to one guitar due to medical expenses, however, with all of my strats/SSS guitars, i wire them up for master volume, master tone, and a blender knob. my favorite strat sound is bridge+neck. I also try to do the mojo-tone volume mod(i think it's a pretty standard treble bleed) on all my guitars.
currently down to one guitar due to medical expenses, however, with all of my strats/SSS guitars, i wire them up for master volume, master tone, and a blender knob. my favorite strat sound is bridge+neck. I also try to do the mojo-tone volume mod(i think it's a pretty standard treble bleed) on all my guitars.
Aku Tonklips
New member
Re: Passive Guitar Mods
My passive to active mod
My passive to active mod
GilmourD
Burritotoneologist
Re: Passive Guitar Mods
Sent from my XT1096 using Tapatalk
I think you missed the point of the thread. LOL
Sent from my XT1096 using Tapatalk
Aku Tonklips
New member
Re: Passive Guitar Mods
Really? I thought it was favorite passive pickup mods, and that is my favorite one.
Really? I thought it was favorite passive pickup mods, and that is my favorite one.
GilmourD
Burritotoneologist
Re: Passive Guitar Mods
It appears to me he's looking for the mods to be passive.
Aku Tonklips
New member
Re: Passive Guitar Mods
I see, perhaps my passive to active mod isn't quite on topic.
I see, perhaps my passive to active mod isn't quite on topic.
Artie
Peaveyologist
Re: Passive Guitar Mods
Basically, yes. Wire it one way, and its a dedicated position. Wire it the "Coil Swap Mod" and it becomes a little more flexible option.
Yes.
Basically, yes. Wire it one way, and its a dedicated position. Wire it the "Coil Swap Mod" and it becomes a little more flexible option.
Yes.
TheMadGypsyBaron
New member
Re: Passive Guitar Mods

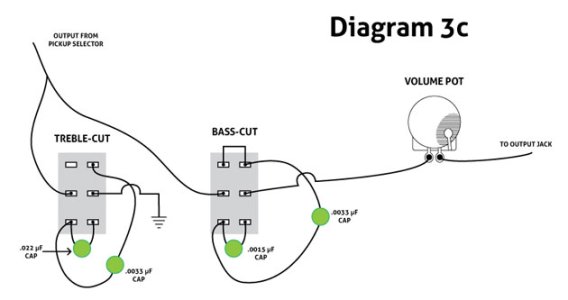

So I found a passive mod for Treble and Bass Cuts on Premier Guitar in an article by Joe Gore (credit given where credit is due).
I want to expand on this idea and would like any input on it. Since it's got cuts for Treble and Bass, we miss Mid control. My idea is using some caps and an inductor, some sort notch filter, to control the mids.
I just don't know how I would wire up all three together. Any ideas?
Thanks!
EDIT: The switches pictured are 3 way On/On/On DPDT switches to have a bypass, little cut, and a lot of cut. I'm thinking that the same thing would be useful for the mids
So I found a passive mod for Treble and Bass Cuts on Premier Guitar in an article by Joe Gore (credit given where credit is due).
I want to expand on this idea and would like any input on it. Since it's got cuts for Treble and Bass, we miss Mid control. My idea is using some caps and an inductor, some sort notch filter, to control the mids.
I just don't know how I would wire up all three together. Any ideas?
Thanks!
EDIT: The switches pictured are 3 way On/On/On DPDT switches to have a bypass, little cut, and a lot of cut. I'm thinking that the same thing would be useful for the mids
Last edited:
