piezo pickup in a strat

[valdezcustoms]

I bought a piezo pickup and put it in my strat. It only works with the electronic pickups on. Is there another way I should wire it? Or is there a cable were I can connect to a single stereo to a single mono? I don't think i want to make another output . Please help



[DreX]

Re: piezo pickup in a strat

Not enough info, can you describe your Strat as it currently is? What does it have in it? What are the controls configured to do?



[idsnowdog]

Re: piezo pickup in a strat

I bought a piezo pickup and put it in my strat. It only works with the electronic pickups on. Is there another way I should wire it? Or is there a cable were I can connect to a single stereo to a single mono? I don't think i want to make another output . Please help

Theoretically you could wire the magnetic and piezo pickup to a stereo jack and then use a stereo cable to go to a splitter box which will break the signal into two separate mono outs. Wiring this isn't very complicated, however they will share a common ground which might cause ground noise. There are also some onboard preamps where you can mix the signals.

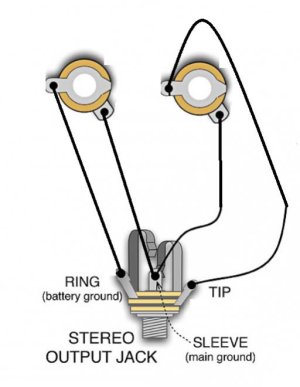

Splitter Box Schematic

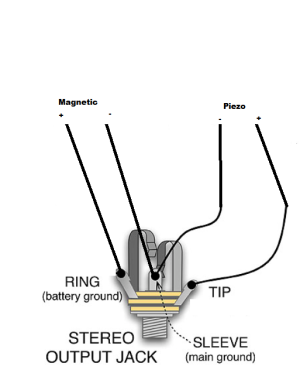

Guitar Jack Wiring
