Power supply for twin tube classic
- Thread starter Tomaspalermo
- Start date
PFDarkside
of the Forum

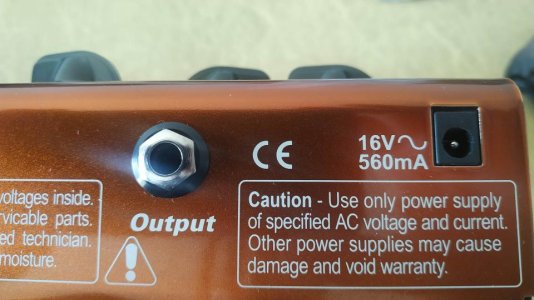

Looks like it’s A/C, so there’s no positive or negative.
That might be a tough adapter to find.
That might be a tough adapter to find.
Mr. 80's
New member
This is the North American power supply the owner's manual calls for https://www.digikey.com/products/en?keywords=MT7123-ND
There is no mention of polarity there in the specs or the owners manual either.
EDIT:
Here's the owners manual as well. https://www.americanmusical.com/itemfiles/manual/seymourduncan/seysfx03_manual.pdf
There is no mention of polarity there in the specs or the owners manual either.
EDIT:
Here's the owners manual as well. https://www.americanmusical.com/itemfiles/manual/seymourduncan/seysfx03_manual.pdf
Last edited:
KNUCKLHEAD
New member
D-Dude could U explain to this ax-thusiast what is redeeming about said pedal ? I've never tried one , ty
Demanic
PenultimateTone Member
It's basically a high gain tube preamp with a built in boost for leads. It also has a switch to change the mid control from being centered on 600hz to 1.4khz. The boost can also run at either +4db or +8db.

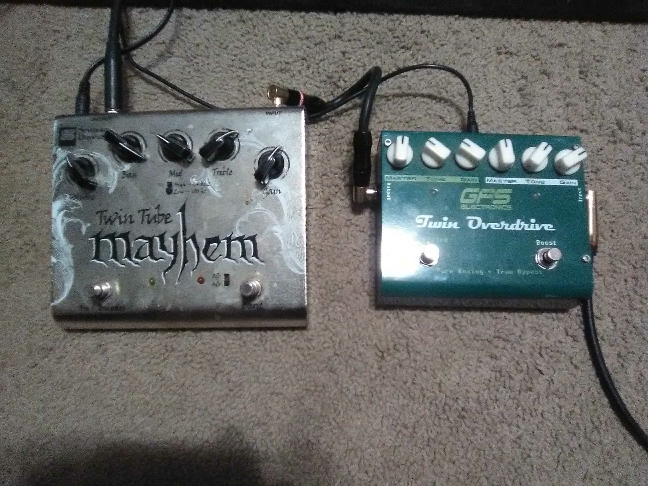

I usually run mine into a clean channel with a GFS Twin Overdrive in front of it in case I want to get really crazy.
One of these days I'll try it straight into the power section of one of my amps.
Sent from my Alcatel_5044C using Tapatalk
I usually run mine into a clean channel with a GFS Twin Overdrive in front of it in case I want to get really crazy.
One of these days I'll try it straight into the power section of one of my amps.
Sent from my Alcatel_5044C using Tapatalk
KNUCKLHEAD
New member
T y , how would u equate it to a M-B Bottlerocket ? I know that ones insanity , I had 1
do U know where S_D put my Avatar ?
do U know where S_D put my Avatar ?
KNUCKLHEAD
New member
k - I screwed up last post but the 2nd part of It ?
Artie
Peaveyologist

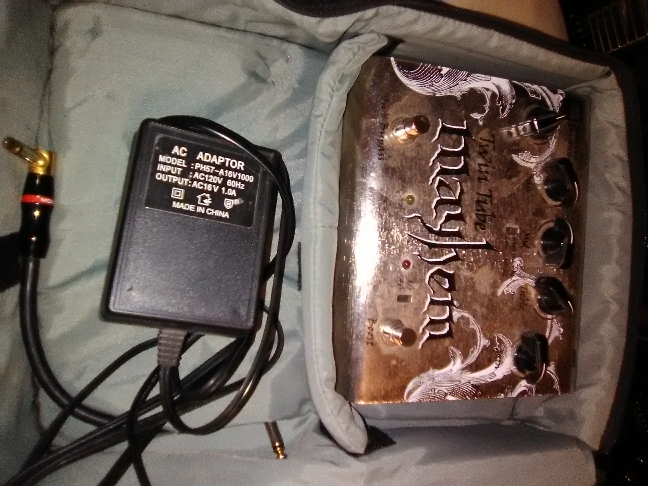

It is 16-volt AC. So, almost any tranny will work as long as it can do 1 amp. But you want to make sure it does a little more than that. Like 2 or 3 amps. You don't want to run a tranny at it's limit.
I also have the Twin Tube Classic. It's one of those pedals that I doubt I'd ever sell. They do something kinda cool internally. They have a 240 volt to 16 volt tranny, wired backwards. So it takes the 16VAC and drives it back up to 240 so that the tubes are run at true HV. I believe that's what gives it the "true" tube sound. It's not a starved plate design, like my Vox Tonelab. (Even though I love my ToneLab.)
But have you contacted Duncan. I did, back when mine went bad, and they just sent me a new Walwart. (If they still have them.)
I also have the Twin Tube Classic. It's one of those pedals that I doubt I'd ever sell. They do something kinda cool internally. They have a 240 volt to 16 volt tranny, wired backwards. So it takes the 16VAC and drives it back up to 240 so that the tubes are run at true HV. I believe that's what gives it the "true" tube sound. It's not a starved plate design, like my Vox Tonelab. (Even though I love my ToneLab.)
But have you contacted Duncan. I did, back when mine went bad, and they just sent me a new Walwart. (If they still have them.)
KNUCKLHEAD
New member
D could U explain the new format since i've been elsewhere a little while ?? what is in honer of said Format plz ?
Demanic
PenultimateTone Member
I said it tounge in cheek. It's a picture of a samurai swinging a sword, which is what my first glimpse of the new format made me want to do.
Sent from my Alcatel_5044C using Tapatalk
Securb
One of Jerry's Kids
Demanic
PenultimateTone Member
PFDarkside
of the Forum
That’s DC, not AC.
Artie
Peaveyologist
Exactly. It won't work.
