Replace pickups in Blacktop Strat.

[Schmuhl91]

I have a pearly gates bridge, and jazz neck. I would like to install in my blacktop strat. I tried installing them with the wires from the blacktop pickups, but everything was out of phase. Any advice would be greatly appreciated! Thanks



[larryguitar]

Check the Seymour Duncan website for wiring diagrams that work with their pickups. Assuming that's 2 humbuckers, one volume, two tones and a 3-way blade, this might help: https://www.seymourduncan.com/images/wiring-diagrams/2H_3B_1V_2T.jpg

You're definitely going to have to change the color codes from Fender to SD to make it work correctly-this should give a pretty good idea of what goes where.

Larry



[Mincer]

Welcome to the forum!

Yes, one of the most frustrating thing in pickup replacement is that wire colors are not universal among brands.



[Mr. B]

If they are both working correctly but are just out of phase, just switch the hot and ground wire connections on one of the pickups.



[Schmuhl91]

Mr. B
Do I have to flip the neck magnet?



[Schmuhl91]

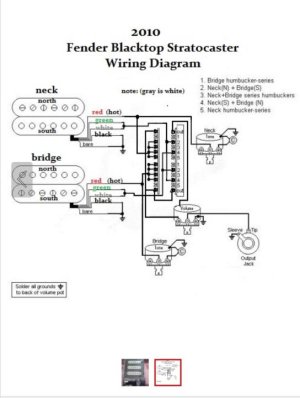

I attached the wiring for the blacktop Strat



[jeremy]

yes, youll want to flip the magnet in one of the pups if you are using that wiring scheme
