Say Hello To Rosie

idsnowdog

Imperator of Indignation

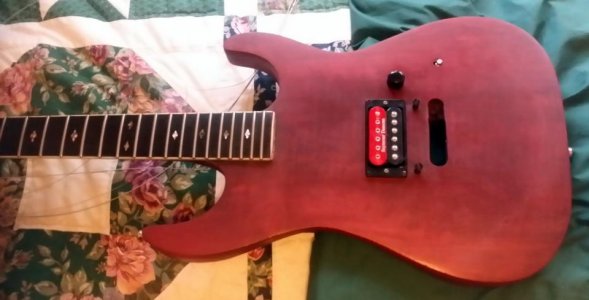

When I saw this guitar this morning on Craigslist I was thinking it was a Kramer or possibly a Carvin. When I went to look at it realized that it more than likely wasn't a production guitar, but instead was a kit guitar that was poorly finished and in need of repair and setup. The woman I bought it from runs a Luthier co-op which specializes in acoustics and she said it needed work. She was selling it because someone left it at her shop and she didn't work on solidbodies. She mentioned the headstock and the scarf joint below the nut. I didn't see anything wrong with the scarf joint other than it was sloppily glued. However the headstock is more concerning looking but appears stable.

The good:
Light and comfortable dinky sized guitar.
The neck/body joint looks solid
Schaller tuners
Schaller Floyd Rose copy
Zero fret wear
Gibson humbucker which I removed and replaced with a JB hybrid.

The bad:

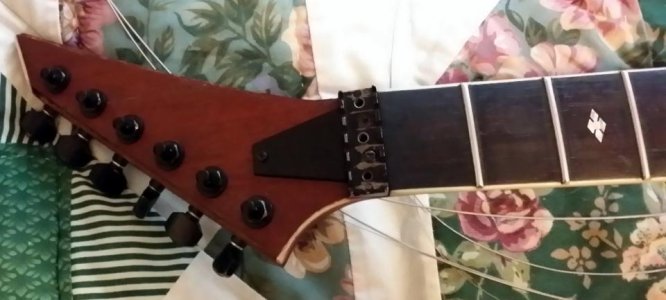

Missing binding on the headstock
Sloppy finish
Sloppy fretboard stain

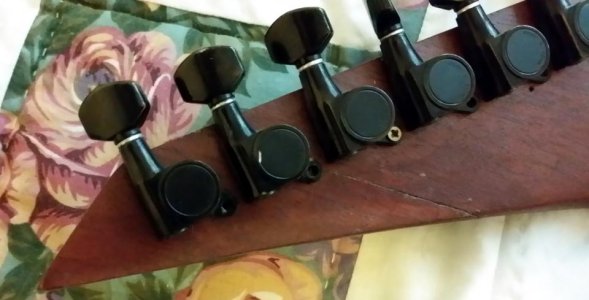

Possible weak joint on the headstock
Missing screws for the tuners
Tremolo needs to be replaced due to broken saddle and stripped screws

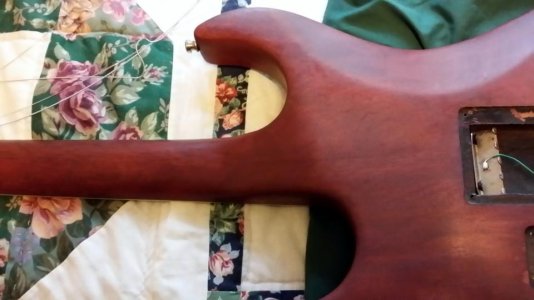

I spent the entire afternoon scrapping stain off the frets and dressing the edges. When I tried to string it up I realized the tremolo needed to be replaced. I will also need to strip and refinish the body and replace the binding on the headstock. The headstock joint appears solid enough and the body could use some pore filler.

While working on it I was left with the impression that whoever built this guitar must have been some sad sack POS who was intimidated by the project and decided to just do a slop job so he had something he could put in the corner and look at rather than play. So how much did this winter project cost? $50.

Last edited:
Re: Say Hello To Rosie

Definitely looks like it needs work, but it has lot's of potential.

Re: Say Hello To Rosie

the thing has a lot of potential, the headstock looks like if it was broken and badly glued, first strip that thing, then look if the headstock is stable, if it is, sandpaper the back of the neck till you get enough wood dust to fill the crack, if not, break the thing and glue it properly (wood glue or super glue) and after that, the thing will look cool as hell finished with oil (boiled linseed oil to make it caramel toned and then Tru Oil), or a frankenstrat kind of finish (to match the JB hybrid) will be killer too!

Re: Say Hello To Rosie

Dude, nice little angry ax there. Reminds me of a Kawasaki Ninja that's been hoodlum'd and dropped a few times trying for hektik wheeleez. That's a guitar that pops it's cap and lowers his Civic.

Re: Say Hello To Rosie

Hi,
What is the pickup hybrid consist of, besides a JB coil.
Little pig bacon, while just the phrase cracks me up, does Utah need string beans? Do they lack beans in general? Is this something I should alert the media about? Genocide by roughage?
SJ

Re: Say Hello To Rosie

Looks like it could be a sweet little shredder, can't wait to see how it turns out!


Words are cheap, let your fingers do the talking

Re: Say Hello To Rosie

Hi,
What is the pickup hybrid consist of, besides a JB coil.
Little pig bacon, while just the phrase cracks me up, does Utah need string beans? Do they lack beans in general? Is this something I should alert the media about? Genocide by roughage?
SJ
I ended up with two JB screw coils so I made a hybrid from them. It has one row of short fillisters on the bridge side and one row of hex heads on the neck side. I also put a ceramic magnet in it and brass baseplate. The JB can be pretty sharp so I thought that the brass baseplate would round off the treble and give the pickup more midrange focus. If it sounds too weird I have other magnets, poles and baseplates I can try. I also have a Entwistel X2 with two slug coils that I can use to make two JB hybrids.

Last edited:
Re: Say Hello To Rosie

Looks like it could be a sweet little shredder, can't wait to see how it turns out!


Words are cheap, let your fingers do the talking

Yup me a m waiting. I think it would be a good idea to strip of all the paint and get to the bare wood.

Re: Say Hello To Rosie

I bought a replacement tremolo on ebay and it should be here next week. I need set it up and prove it's structurally sound before I give any thought to refinishing it. I'm thinking that I can probably cut a aluminum backing plate and glue it to the headstock to stiffen the questionable neck joint.

Re: Say Hello To Rosie

I bought a replacement tremolo on ebay and it should be here next week. I need set it up and prove it's structurally sound before I give any thought to refinishing it. I'm thinking that I can probably cut a aluminum backing plate and glue it to the headstock to stiffen the questionable neck joint.

Cut out an aluminum plate that is your headstock shape, drill holes, screw it to the the top and have yourself a mean looking AND functional headstock


Words are cheap, let your fingers do the talking

Re: Say Hello To Rosie

$50???? You should be able to get that much or more out of the Gibson bucker. Nice score!!!
I'm going to keep the Gibson bucker for now. It's a 496R that I put an Alnico 5 in and so far it is the pickup I like the best in the neck of my Black Betty. If I can't make the 496R work it should at least provide sell for enough to buy a replacement.
