SC Wiring - Ibanez RG

[Nhastings]

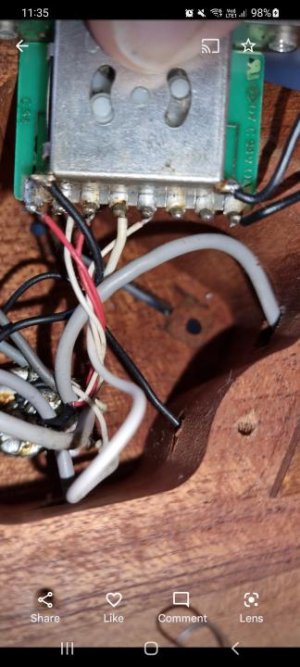

This is the CorTek SC switch in a 2000 RG. I cannot find a wiring diagram that shows this set up (specifically with 2 pins unused) ANYWHERE.

It's a two wire V7/ V8 (HH) setup with single Vol and Tone pots.

Has anyone seen this arrangement of wiring on the CorTek before, or should I assume someone has tried to do their own soldering job at some point and made a hash of the wiring?

TIA



[Downrazor11]

This is the CorTek SC switch in a 2000 RG. I cannot find a wiring diagram that shows this set up (specifically with 2 pins unused) ANYWHERE.

It's a two wire V7/ V8 (HH) setup with single Vol and Tone pots.

Has anyone seen this arrangement of wiring on the CorTek before, or should I assume someone has tried to do their own soldering job at some point and made a hash of the wiring?

TIA

Is there a number printed on the other side of the switch?



[Downrazor11]

This is the CorTek SC switch in a 2000 RG. I cannot find a wiring diagram that shows this set up (specifically with 2 pins unused) ANYWHERE.

It's a two wire V7/ V8 (HH) setup with single Vol and Tone pots.

Has anyone seen this arrangement of wiring on the CorTek before, or should I assume someone has tried to do their own soldering job at some point and made a hash of the wiring?

TIA

More questions:

-Is this a 5-way (5 position) switch?

-What do you want/expect to happen in each switch position?
