Schaller Megaswitch M with Black Winter set

[wisdom727]

First post here. I built an Ibanez RGA tribute from scratch, intending to use a Megaswitch M and a set of Black Winters.
I used Schaller's wiring diagram for the HH10 configuration.
When I soldered everything and pluggged in the guitar, it sounded awful. The bridge HB position 1 was thin and harsh and other positions did not sound as I expected. (I even measured the DC resistance for each position, and they were close to my calculated values.) So, I assume that I have wired the pickups incorrectly.
I searched these forums and other sites for more information about which wire color matched the + and - shown on the Schaller diagram, but I found conflicting info.

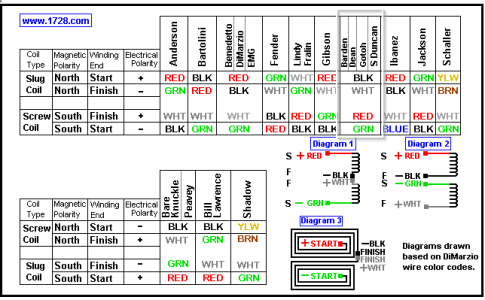

I found this chart on another site: https://www.1728.org/guitar8.htm



But on the Schaller web site, it says for standard SD humbuckers:

• screws south, black +, white -
• fixed poles north, red +, green -

Could someone please tell me what the correct coils polarities and wire colors are for my Black Winter set?
Thanks!



[wisdom727]

I think the Schaller description is wrong. I think the following edit of the HH10 schematic is correct, but I'd appreciate any confirmation or correction.
zz0.459jay67rw4zz



[wisdom727]

Since I didn't get any response to my post, I decided to rewire my Black Winters to Megaswitch M based on my drawing.
It worked and my guitar now sounds as I would expect. Done! : party:
