sh-6n & SD Tb6 Trembucker hsh wiring diagram

[Sqpalu67]

Guys I need your help,
bought these 2 distortion series humbuckers (Duncan Distortion sh-6n & SD Tb6 Trembucker)
I have a Fender Player HSH with normal pickups but I want to mount these 2 seymour duncan distortion but I can't find the wiring diagram for this guitar.
Can you help me?

Thanks, Sorry for my english I write from europe.



[PFDarkside]

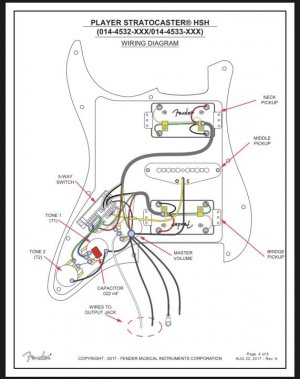

Here’s your current diagram:
https://www.fmicassets.com/Damroot/Original/10001/SM_014453XXXX_Player_Strat_HSH_Rev_A.pdf



[PFDarkside]

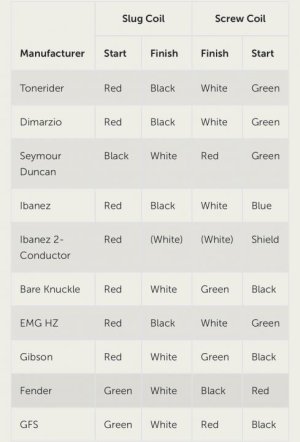

Here are the manufacture color equivalents.

Now Fenders are usually out of phase compared to Duncan so you may need to swap the Duncan Black and Green wires to be in phase.

The final question will be if the Fender will cancel hum in 2/4. I’ll wait for the techs to chime in, because I’d just get an SSL-1 for the middle so it’s all in phase and hum cancelling. Artie and the other guys will know if you have to wire the Duncan
”inside out” to cancel hum with the Fender SC.



[Mincer]

If you are keeping the middle Fender single coil, you will have to flip the hot and ground of the Duncans (green to hot, black to ground) for it to be in phase with the Seymour Duncans.



[Sqpalu67]

If you are keeping the middle Fender single coil, you will have to flip the hot and ground of the Duncans (green to hot, black to ground) for it to be in phase with the Seymour Duncans.

Yes, I want to keep the single coil in the middle. But I didn't understand what exactly I have to do.
Could you modify this wiring diagram please?



[Sqpalu67]

Here are the manufacture color equivalents.

Now Fenders are usually out of phase compared to Duncan so you may need to swap the Duncan Black and Green wires to be in phase.

The final question will be if the Fender will cancel hum in 2/4. I’ll wait for the techs to chime in, because I’d just get an SSL-1 for the middle so it’s all in phase and hum cancelling. Artie and the other guys will know if you have to wire the Duncan
”inside out” to cancel hum with the Fender SC.

I'm not sure I have understood correctly



[beaubrummels]

I'm not sure I have understood correctly

Wire colors you solder to replace the pickups

FENDER >> DUNCAN
Green >> Black
White >> White
Black >> Red
Red >> Green

Except, Fenders are out of phase to Duncans, so flip positive and ground on the Duncans, like so

FENDER >> DUNCAN
Green >> Green
White >> White
Black >> Red
Red >> Black



[Sqpalu67]

Thanks to everyone, today I'm going to work hoping it will work.
Happy New Year:usa2:



[Mincer]

Let us know how this turns out!



[Sqpalu67]

Let us know how this turns out!

ok, Morning i work,
today i am ko :smack:



[Sqpalu67]

Hello,

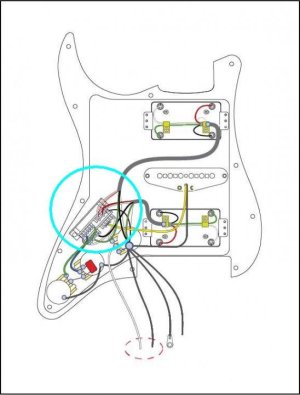

I made a modification to the original Fender diagram with the diagramm to weld the 2 seymours, In your opinion is this correct ?



[Sqpalu67]

did I get it right ?
;-)
