Strat Pick-ups — Low vs High Output?
- Thread starter JPMTO
- Start date
Jacew
New member
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
I agree.
Re: Strat Pick-ups — Low vs High Output?
I agree.
gregory
New member
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
You must hate Fender's TBX control. I know I do.
Chistopher
malapterurus electricus tonewood instigator
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
When wired properly (I.E. not the Fender way) the TBX is rather useful as a tone shaper.
Re: Strat Pick-ups — Low vs High Output?
You must hate Fender's TBX control. I know I do.
When wired properly (I.E. not the Fender way) the TBX is rather useful as a tone shaper.
Clint 55
OH THE DOUBLE THICK GLAZE!
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
They seem cool. No load in the center and 1 meg bass cut to 1 side and 250k tone to the other? When I rarely need less bass, I don't mind turning it down on the amp. How come you don't like them?
Re: Strat Pick-ups — Low vs High Output?
You must hate Fender's TBX control. I know I do.
They seem cool. No load in the center and 1 meg bass cut to 1 side and 250k tone to the other? When I rarely need less bass, I don't mind turning it down on the amp. How come you don't like them?
Chistopher
malapterurus electricus tonewood instigator
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
Fender wires them wrong. 0 to 5 acts as a standard tone control and 5 to 10 does nothing except give you a 1meg pot, no caps or anything. But 5 to 10 creates the illusion of adding more high end with a tricky resistor that actually gets faded out of the circuit throughout the entire rotation. So it actually works as a standard tone from 0 to 5 and it gradually fades from having 82k of load when the the pot is on 0 to almost no load when the pot is on 10.
Re: Strat Pick-ups — Low vs High Output?
Fender wires them wrong. 0 to 5 acts as a standard tone control and 5 to 10 does nothing except give you a 1meg pot, no caps or anything. But 5 to 10 creates the illusion of adding more high end with a tricky resistor that actually gets faded out of the circuit throughout the entire rotation. So it actually works as a standard tone from 0 to 5 and it gradually fades from having 82k of load when the the pot is on 0 to almost no load when the pot is on 10.
gregory
New member
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
Bass cut...sigh, not this again. Not pointed directly at you, Clint, but no, it is not an effing bass cut.
In a nut shell:
A regular tone control from zero up to the detent at 5, but with an 82k load. You know, stick an 82k resistor on the input of your 250k volume control in addition to the 250k tone control. This is exactly what a TBX does up the the detent at 5. At the detent the tone control goes no load, but guess what(!) the 82k resistor is still there. From the detent to up to 10 it's a 1M linear taper that gets added to the 82k loading down the 250k volume. At 10 you've got 1M and change dangling from your 250k volume, which gives you a total load of ~200k.
Where's the circuit that cuts bass?
Oh, that's right...there isn't one! :34:
Re: Strat Pick-ups — Low vs High Output?
Bass cut...sigh, not this again. Not pointed directly at you, Clint, but no, it is not an effing bass cut.
In a nut shell:
A regular tone control from zero up to the detent at 5, but with an 82k load. You know, stick an 82k resistor on the input of your 250k volume control in addition to the 250k tone control. This is exactly what a TBX does up the the detent at 5. At the detent the tone control goes no load, but guess what(!) the 82k resistor is still there. From the detent to up to 10 it's a 1M linear taper that gets added to the 82k loading down the 250k volume. At 10 you've got 1M and change dangling from your 250k volume, which gives you a total load of ~200k.
Where's the circuit that cuts bass?
Oh, that's right...there isn't one! :34:
Last edited:
Chistopher
malapterurus electricus tonewood instigator
Chistopher
malapterurus electricus tonewood instigator
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
No it's a schematic. The schematic I posted is a simple modification to make a useless pot useful. That schematic in fact only works with the trick potentiometer used in a TBX. Saying it's not a TBX because it's wired differently is like saying a Les Paul with Jimmy Page wiring isn't a Les Paul.
Re: Strat Pick-ups — Low vs High Output?

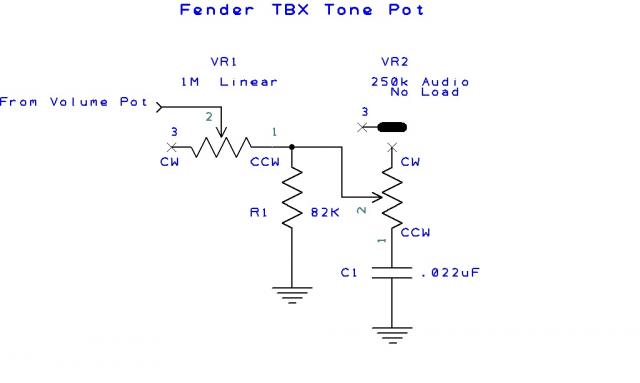

This, Christopher, is a Fender TBX control:
No it's a schematic. The schematic I posted is a simple modification to make a useless pot useful. That schematic in fact only works with the trick potentiometer used in a TBX. Saying it's not a TBX because it's wired differently is like saying a Les Paul with Jimmy Page wiring isn't a Les Paul.
gregory
New member
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
The TBX control is a complete circuit, not just a pot. I've provided the schematic of the circuit. You've presented an alternative way to use a pot, which from your post seems like it may use a different pot altogether.
i.e.: not a TBX control circuit therefore not a TBX control.
Somehow you forgot to post the schematic. Would you mind doing so?
Re: Strat Pick-ups — Low vs High Output?
The TBX control is a complete circuit, not just a pot. I've provided the schematic of the circuit. You've presented an alternative way to use a pot, which from your post seems like it may use a different pot altogether.
i.e.: not a TBX control circuit therefore not a TBX control.
Somehow you forgot to post the schematic. Would you mind doing so?
Last edited:
Chistopher
malapterurus electricus tonewood instigator
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
It's post #68, not a schematic, but I can probably draw one up real quick if you want. I changed it even further to put another 1meg resistor so there isn't a jump in treebles when it hits the center detent.
Re: Strat Pick-ups — Low vs High Output?
It's post #68, not a schematic, but I can probably draw one up real quick if you want. I changed it even further to put another 1meg resistor so there isn't a jump in treebles when it hits the center detent.
Clint 55
OH THE DOUBLE THICK GLAZE!
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
That doesn't sound very good. 200k is about how much my 250k no load tone pots have before they go no load. I've started using all 250k no load tones because they're as bright as you need it and then they take effect as soon as you turn it down to 9.
Re: Strat Pick-ups — Low vs High Output?
That doesn't sound very good. 200k is about how much my 250k no load tone pots have before they go no load. I've started using all 250k no load tones because they're as bright as you need it and then they take effect as soon as you turn it down to 9.
Last edited:
Clint 55
OH THE DOUBLE THICK GLAZE!
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
So you can wire em with a bass cut?
Re: Strat Pick-ups — Low vs High Output?
So you can wire em with a bass cut?
gregory
New member
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?

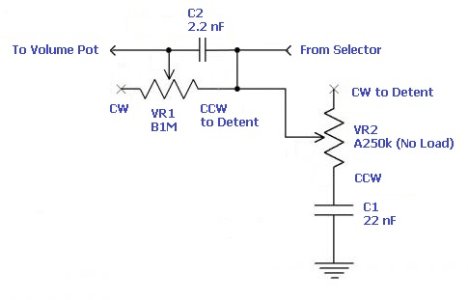

I didn't catch there being an input and an output, so yeah, it's like a tone control from 0-5 and then a high-pass shelf (literally the same as the B portion of the PTB control set) from 5-10.
This can be an extremely useful circuit to get a neck pickup to provide nice fat cleans as well as thin it out for gain.
Re: Strat Pick-ups — Low vs High Output?
I didn't catch there being an input and an output, so yeah, it's like a tone control from 0-5 and then a high-pass shelf (literally the same as the B portion of the PTB control set) from 5-10.
This can be an extremely useful circuit to get a neck pickup to provide nice fat cleans as well as thin it out for gain.
Last edited:
YeRedHouseOverYonder
New member
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
Did you end up going to your tech? I have a Nash S-63 with Dirty Blondes going through a klone and Tweed Harvard/White Amp Clone. From what I've read, White Amps are pretty similar to Tweed Princetons. The Blondes cut well with the klone and amp. The Harvard side keeps the low end from flubbing out on me. I don't play live anymore however, YMMV.
Sent from my LG-H931 using Tapatalk
Re: Strat Pick-ups — Low vs High Output?
Did you end up going to your tech? I have a Nash S-63 with Dirty Blondes going through a klone and Tweed Harvard/White Amp Clone. From what I've read, White Amps are pretty similar to Tweed Princetons. The Blondes cut well with the klone and amp. The Harvard side keeps the low end from flubbing out on me. I don't play live anymore however, YMMV.
Sent from my LG-H931 using Tapatalk
Re: Strat Pick-ups — Low vs High Output?
Re: Strat Pick-ups — Low vs High Output?
Hey I did and ended up putting the CS 60’s back in the neck and middle. And replaced the bridge with a SD Antiquity Surfer. It works quite well. I do think a 9.8k bridge with a 5.8k middle is a bit much. I’m still thinking about replacing that bridge with something around 7k. Then I can sell the Surfers as a set. But have to admit the set up is really good.
Re: Strat Pick-ups — Low vs High Output?
Hey I did and ended up putting the CS 60’s back in the neck and middle. And replaced the bridge with a SD Antiquity Surfer. It works quite well. I do think a 9.8k bridge with a 5.8k middle is a bit much. I’m still thinking about replacing that bridge with something around 7k. Then I can sell the Surfers as a set. But have to admit the set up is really good.
