Telecaster Custom Wiring - Help needed

[NiKo Zed]

Hello my friends !

I need some help with an idea I had.

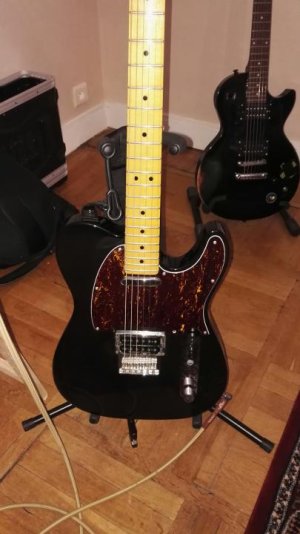

I have this Telecaster (Fender Modern Player Telecaster Plus - modded)


I've added a 4 way switch and a push-pull pot and I'd like to get more of it.

Now it's wired as follow :
pos 1 - full bridge PU
pos 2 - full bridge & neck (parallel)
pos 3 - neck PU
pos 4 - full bridge & neck (serie)
the push/pull splitting the bridge.

And I'd like the bridge to be always split, but the push/pull to add the second coil on the bridge position only, so I'd have that :


*volume pot down*
pos 1 - bridge split
pos 2 - bridge split & neck (parallel)
pos 3 - neck
pos 4 - bridge split & neck (serie)


*volume pot up*
pos 1 - bridge full
pos 2 - bridge split & neck (parallel)
pos 3 - neck
pos 4 - bridge split & neck (serie)


So I can have a "boost" in the bridge position only.


I don't know if I'm clear enough and if that's possible...

Thanks guys <3



[beaubrummels]

Re: Telecaster Custom Wiring - Help needed

I can't see that working. To have it work, you would need position 1 of the switch to lift the push-pull off of ground while simultaneously connecting the bridge to the output. Since both sides of the blade switch are used for the pickups, you don't have anything left over to mod the push-pull in position 1.



[NiKo Zed]

Re: Telecaster Custom Wiring - Help needed

@beaubrummels that's what I thought... thanks for the answer !
