Throwing a lil' 59 in a Traveler Speedster

[taeyeon]

So I bought a lil 59 to put in my Traveler Speedster, I basically want to do exactly what this guy did: http://speedsterguitarlittle59.blogspot.com/2011/09/replacing-traveler-speedster-guitar.html?m=1

The problem is I can't for the life of me find the wiring diagram he is talking about on Seymour Duncan's website. If anyone could point me in the right direction and even possibly throw a few tips for someone doing their first pickup swap I would greatly appreciate it.


Sent from my iPhone using Tapatalk



[Chistopher]

Re: Throwing a lil' 59 in a Traveler Speedster

This is from a bass, but it works the same:


The pickup colors from top to bottom are black, white, red, green.



[taeyeon]

Re: Throwing a lil' 59 in a Traveler Speedster

This is from a bass, but it works the same:
View attachment 85684

The pickup colors from top to bottom are black, white, red, green.

Any chance you can upload a better quality photo? I can't read anything going on there... thanks though, I might be able to figure it out with just that if not.


Sent from my iPhone using Tapatalk



[Chistopher]

Re: Throwing a lil' 59 in a Traveler Speedster

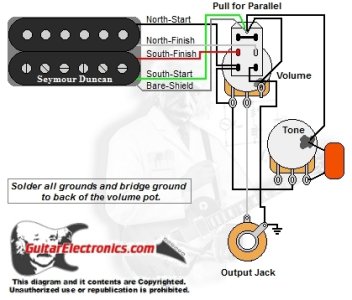

This is a diagram for a push/pull pot, but you can use the same wiring for a 2-way toggle switch.



[taeyeon]

Re: Throwing a lil' 59 in a Traveler Speedster

View attachment 85717

This is a diagram for a push/pull pot, but you can use the same wiring for a 2-way toggle switch.

Awesome! Thanks


Sent from my iPhone using Tapatalk
