What is my pedal?

[Larsson]

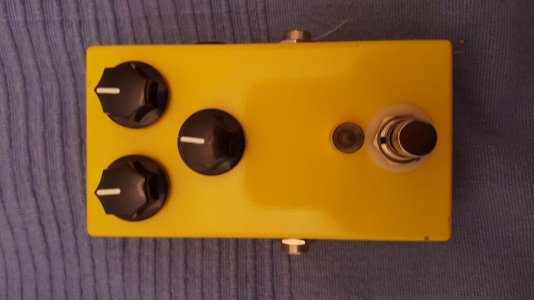

So in 2011 i got built a pedal from a kit but can't remember what it is. It's an overdrive but I'm not sure what type it's replicating, has a volume drive and tone control and LED.

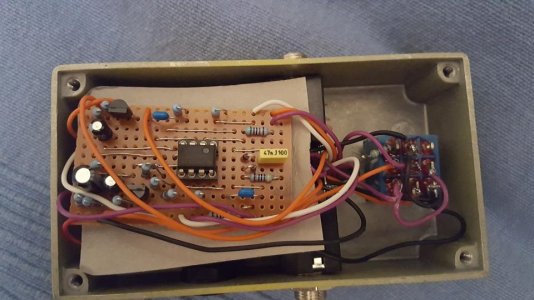

Can anyone tell from photos? Long shot but opened it up to see what's in there - I think it may be a tube screamer clone but I've lost the paperwork from when I made it so don't really know.

Can anyone help?



[czarokrates]

Re: What is my pedal?

At first looks like OCD by Fulltone.

EDIT:TS808, haven't noticed those clipping diodes.



[Larsson]

Re: What is my pedal?

At first looks like OCD by Fulltone.

EDIT:TS808, haven't noticed those clipping diodes.

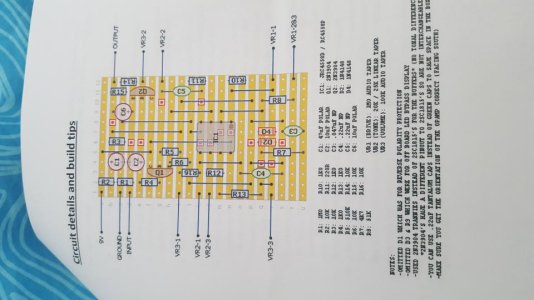

I was able to find the schematic for the build and have attached that if I helps? I imagine it is some sort of tubescreamer though with the build being called SRV.



[czarokrates]

Re: What is my pedal?

Yes, it's not an exact copy of TS-808. Some values vary and some caps are omitted, but the thing you have is an essence of TS.



[Larsson]

Re: What is my pedal?

Yes, it's not an exact copy of TS-808. Some values vary and some caps are omitted, but the thing you have is an essence of TS.

Big thanks for the help identifing the pedal!



[Mincer]

Re: What is my pedal?

Who made the kit? I kinda like it.



[Larsson]

Re: What is my pedal?

Yes, it's not an exact copy of TS-808. Some values vary and some caps are omitted, but the thing you have is an essence of TS.

Big thanks for the help identifing the pedal!



[Larsson]

Re: What is my pedal?

Who made the kit? I kinda like it.

It's made by diypedalkits. I don't think they're still around. The website was www.diypedalkits.com



[PFDarkside]

Re: What is my pedal?

If you are interested in building more pedals, Build Your Own Clone supplies actual PCBs and instructions, and if you want to continue tagboard style builds, http://tagboardeffects.blogspot.com/?m=1 has literally hundreds of projects.
