where to get flat terminal blocks for harness wiring

[Nxpb7B]

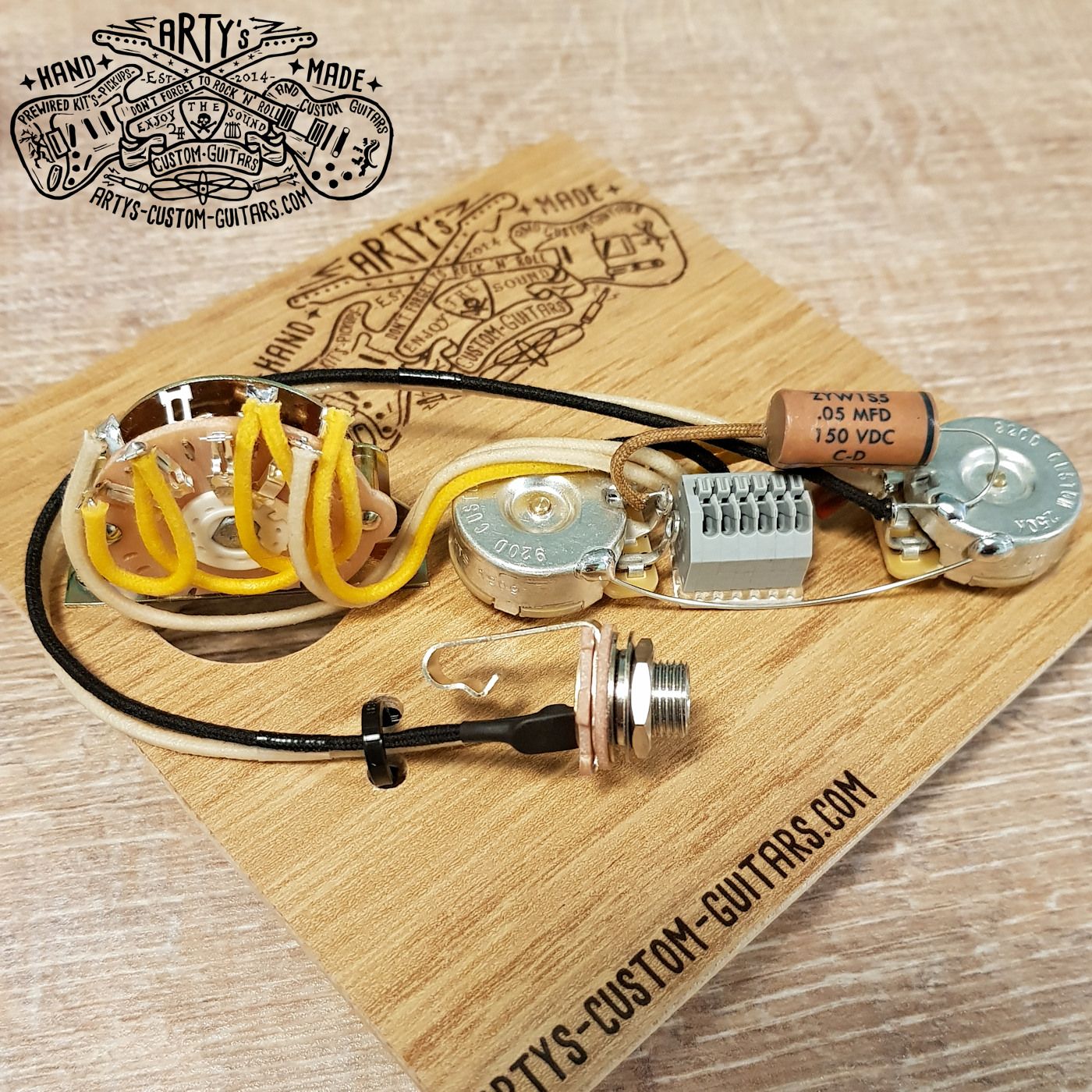

going to rewire a few of my guitars with new pups and would like to make use of those solderless terminal blccks i see in wiring harnesses beeing sold. thing is i don't know where to get these. looking for the flat ones i could stick to plate or pot. i'm not building mini circuit board types, so nothing too fancy. i'll add an random image of a tele harness that has one of these terminal blocks to give you an idea. anyone know where i can order some like these. doesn't have to be exact but you get the idea.



[Mincer]

I haven't seen them quite like that (a cool idea). I have used the Liberator pot with great success, though.



[eclecticsynergy]

Most of 'em are designed to attach to a circuit board.
In the OP pic you can see a fiber board under it taking the place of a PC board.

However, there are some with push terminals at each end.
I bet these would work - it looks like you can just stack as many together as you need.

https://www.aliexpress.com/item/4000820871354.html



[beaubrummels]

I use a Liberator these days. Once I decide on pickups, I replace with proper pots and harness.

I used to use mini-terminal blocks bought from Radio Shack and just cut off the number of terminals I needed: https://www.radioshack.com/products/...8d1d353b&_ss=r



[Nxpb7B]

I haven't seen them quite like that (a cool idea). I have used the Liberator pot with great success, though.

i do have a liberator here that i never used. i got the wrong sized pot for the guitar so i never used it. seems a bit bulky for my tele too. but, the idea of it is great.



[Nxpb7B]

Most of 'em are designed to attach to a circuit board.
In the OP pic you can see a fiber board under it taking the place of a PC board.

However, there are some with push terminals at each end.
I bet these would work - it looks like you can just stack as many together as you need.

https://www.aliexpress.com/item/4000820871354.html

yes, i did see that. and that board is very thin which would work well in tight places like a guitar wiring harness and could be taped down with mild adhesive. but mini terminal block splicers as your link shows would work well too if i can get them small enough. there is a gazillion solderless clamp terminal block types when looking about. was hoping i could narrow the search down via diy guitar people. your aliexpress link might fit the bill. thanks!



[Nxpb7B]

I use a Liberator these days. Once I decide on pickups, I replace with proper pots and harness.

I used to use mini-terminal blocks bought from Radio Shack and just cut off the number of terminals I needed: https://www.radioshack.com/products/...8d1d353b&_ss=r

radioshack part not in stock but amazon has them. the liberator seems better than those.

thanks for the reply and idea. i may revisit the liberator & buy the correct pot liberator for the tele.



[iosman]

radioshack part not in stock but amazon has them. the liberator seems better than those.
https://creditcardsupportx.com/american-eagle-credit-card
https://creditcardsupportx.com/amazon-credit-card
https://creditcardsupportx.com/midas-credit-card
thanks for the reply and idea. i may revisit the liberator & buy the correct pot liberator for the tele.

thanks for the awesome information.



[chadd]

Mouser and Newark are great options for electronics parts.



[Mincer]

Also, ToneShapers makes something like this, too. I've never used their stuff, though.
