Who's working on a build right now? Let's see your stuff!

Re: Who's working on a build right now? Let's see your stuff!

Silver said:
Been putting together this recently;

View attachment 83978

View attachment 83979

Here are the specs;

Body: From USACG*, one-piece mahogany... gonna finish it with tru-oil, contoured heel, single battery box

Neck: From Warmoth, wenge with macassar ebony fretboard, wolfgang asymetrical profile, 1 5/8" nut width (I got small hands), 10-16" compound radius, stainless steel medium-jumbo frets, side inlays only, kahler/floyd locking nut. The neck does not require a finish, so it is unfinished, feels great.

Hardware: Kahler 7300 Hybrid Trem (can lock into a hardtail), Kahler locking nut with string retainer (no need for seperate string retainers, cleaner look), schaller auto-trim locking tuners (not needed, but make string changes easier), schaller strap locks. Everything black. It's mocked up above with a wenge pickguard but I am not using that... it will have a matte black plastic guard.

Pickups/Electronics: I've mocked it up with EMGs above, but it will actually have Blackouts (AHB-1) that are currently in another guitar. 3-way strat style switch: neck-both-bridge. I'm going to have one master volume control and then a tone control for each pickup.


* - Unfortunately, I had to return the body to USACG because the rout for the Kahler was incorrect. It was a quarter inch too close to the neck, so the scale length when set up was only 25.25" and the saddles on the Kahler cannot move far enough to compensate for that. Hopefully I will have a new body from them soon.
Click to expand...

Nice!

One comment and one question:

Comment: I know you said you’re gonna use a matte black guard, but I kinda like that wenge one, goes great with the macassar ebony board.

Question: What’s this?


Re: Who's working on a build right now? Let's see your stuff!

BriGuy1968 said:
Nice!

One comment and one question:

Comment: I know you said you’re gonna use a matte black guard, but I kinda like that wenge one, goes great with the macassar ebony board.

Question: What’s this?

Click to expand...

I ordered that pickguard after I got the neck but before I got the body.

My original intention was to have a 3-way toggle switch, located where that hole is. So you see there is no slot for a standard strat switch... that's because my pickup selector was gonna be where that hole is.

Anyway, turns out that the battery box route is in the way... there is no room for me to drill a hole for a 3-way toggle there. I asked if they could move the battery box rout and they said no because it's all done on CNC machine. I couldn't do it myself, I don't have the skills.

So... I decided to go back with a normal strat switch.

But no I can no longer get a wenge guard made. The company that made that one has stopped doing them. I've looked everywhere and I either can't get the same quality (I can get a veneered plastic guard, but no a solid wood guard) or I can't get it in wenge. So I'm going with plastic.

Re: Who's working on a build right now? Let's see your stuff!

Silver said:
I ordered that pickguard after I got the neck but before I got the body.

My original intention was to have a 3-way toggle switch, located where that hole is. So you see there is no slot for a standard strat switch... that's because my pickup selector was gonna be where that hole is.

Anyway, turns out that the battery box route is in the way... there is no room for me to drill a hole for a 3-way toggle there. I asked if they could move the battery box rout and they said no because it's all done on CNC machine. I couldn't do it myself, I don't have the skills.

So... I decided to go back with a normal strat switch.

But no I can no longer get a wenge guard made. The company that made that one has stopped doing them. I've looked everywhere and I either can't get the same quality (I can get a veneered plastic guard, but no a solid wood guard) or I can't get it in wenge. So I'm going with plastic.
Click to expand...

That’s a shame.

How about getting some other type of wood (unfinished) and staining it to match the board? Maple would be too hard to get that dark, but a darker wood like walnut would be easy enough to pull the color over.

Or maybe make that hole into an inlay of sorts, even if you have to change the hole’s shape a little?

But then too, having a nice guard like that around might be a good excuse to start another project. Hmmm... [emoji848]

Re: Who's working on a build right now? Let's see your stuff!

AWESOME! Yeah that's on the cards for me i like the idea but i wont be able to resist the faux hole.

Re: Who's working on a build right now? Let's see your stuff!

The hole is real and functional, you could do a Kangaroo shaped hole

Re: Who's working on a build right now? Let's see your stuff!

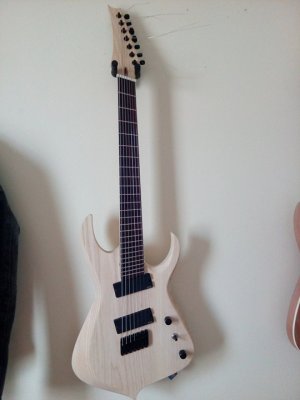

All done apart from the finish, gonna play it for a while then pull it down for finishing


Re: Who's working on a build right now? Let's see your stuff!

kramersteen said:
Got the neck fitted and am super happy with the fit of the joint. It's a funny looking thing but i really like it and it seems to balance great.
Click to expand...

Cool, what color is that gonna end up?

Re: Who's working on a build right now? Let's see your stuff!

Its going to be hard to fit a neck pickup with that thing blocking the hole but other than that i really like it :). All your stuff is pure :headbang::headbang: And very inspirational.

Re: Who's working on a build right now? Let's see your stuff!

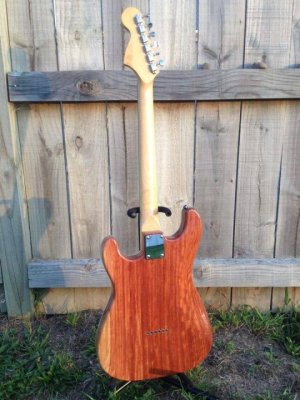

A bit late, here's the finished product. It's pretty hard to capture the correct hue of the finish and wood figure. Looks waayy better in person. Rosewood neck is a marvel to feel. Soft V with a correct '58-59 LP profile. Smaller than my R8 for sure. Smooth. Ebony board as always makes for effortless bends. I LOVE the tele bridge pickup, wow, I've been missing out for years. Don't dig the neck p'up too much. I may sell it and put a double cream HB there in the upcoming months. Maybe a HB sized p90. Probably will drop tune. All and all, worth the wait (this started in late winter/early Spring).


Sent from my LG-H931 using Tapatalk

Last edited:
Re: Who's working on a build right now? Let's see your stuff!

I do have a '62 double cut Melody Maker that's being restored/finished in TV White (a projected started in the Summer). Did minor work and all the wiring on it before the refret/refinish. Should be done by late Dec.



Did manage to score a relatively clean '60 single cut MM for a steal. Made an offer and it got accepted. I had leftover change after selling my motorcycle. I'll be doing all the work on this one. Should be straight forward. Replacement parts/setup. Hoping to finish in late Jan. Will have to sell parts/pedals to fund this.



Sent from my LG-H931 using Tapatalk

Last edited:
