Wiring diagram with P-Rails with CTS push-pull DPDT pots

[thefsb]

I put P-Rails on my old PRS Santana SE using the CTS push-pull pots. Works great! Love om and love the guitar more now.

The wiring with these pots wasn't 100% obvious to me but in the end I found that this works.

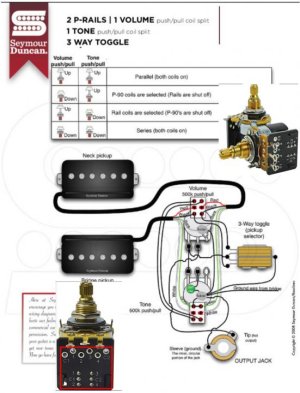

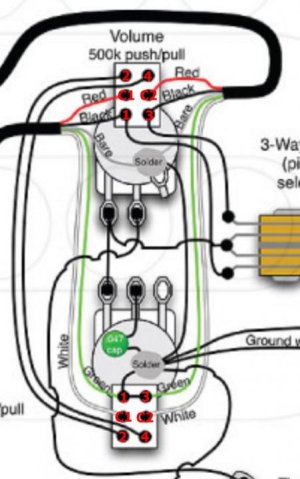

I put the number of the CTS switch terminals on the SD wiring diagram. If you can see them ok then I'll leave this here for others to refer to.



[Mincer]

I am happy this project turned out ok. This is certainly an option when Triple Shots won't work or aren't available.
