Wiring Duncan Distortion

[ChzRxx]

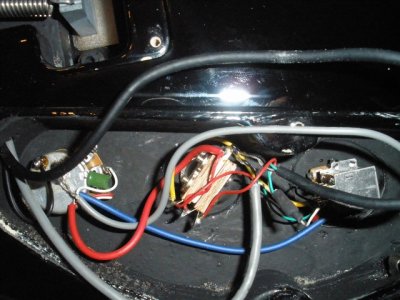

I am replacing the bridge pickups in my Kramer Assault 220FR...Are the wiring schemes with pickups universal ? This guitar has coil tapping and in the instructions that came with the DD everything looks different that the way it is wired....of course I took pics...and I am wondering if I can replace the wires the same way they were when I took them out ?...in other words...put the green from the DD where the green was that I am taking out...there is one volume and one tone....the push-pull pot is the tone...The black wire coming out of the hole on the far left is the pickup I am replacing...the first pot on the left is the volume....the middle connections are the 3 way toggle switch....the far right is the tone (push/pull pot)

Original wiring......Grn/Wht - Soldered taped
Blk/Bare - Soldered to connection at top of toogle sw
Red - Soldered to connection on other side of toggle switch

Duncan Distortion instructions show
Red/Wht - Middle connection on toggle switch
Grn/Bare - Soldered to top of volume pot
Black - Soldered to side connection on volume pot



[Edgecrusher]

Re: Wiring Duncan Distortion

No you have to use the Duncan color codes. Follow the instructions with the pickup different manufacturers use different color schemes for the wires.



[ChzRxx]

Re: Wiring Duncan Distortion

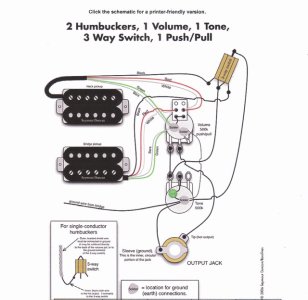

Thanks....here is the diagram.....everything goes to the VOLUME....guess I want to make sure is all...the Push/Pull on this Kramer is the TONE ...so wire it like it is below then?....go to the VOLUME?



[ChzRxx]

Re: Wiring Duncan Distortion

Thanks but going to take this to a friend that is a professional. Sometimes that's what you need to do. Thanks for the input. Have a good one...
