Wiring - Help Please!

[wassupdoc]

You good folks haven't let me down before!

I have at my disposal:
An SH-1 and SH-2 set (four conductor)
3 push-pull pot spaces
A Gibson style 3 way toggle

I would like to have:
Coil split on both humbuckers (North neck, South bridge as per usual)
Series/Parallel switching for each humbucker.
Two volumes, one tone

I can not find a diagram that gives me these options anywhere Is it possible?
Any combination is okay with me, ie Master coil tap, individual Series/Parallel or Master Series/Parallel and individual coil taps

Please help me!

(Treble bleed gives you a big bonus of internets!)



[beaubrummels]

Re: Wiring - Help Please!

I believe this is possible using three push-pulls. Have each volume handle the coil series/parallel for that pickup and use the tone push-pull to split both humbuckers.

The left switch in this diagram shows how you would do the series/parallel on your volume push-pulls.
http://www.seymourduncan.com/suppor...ics.php?schematic=series_spl_parallel-w-phase

The left switch in this diagram shows how you would do the coil splitting on your tone push-pull. Notice that only one side of the switch is used. Simply use one side of the switch for one pickup, and the other half of the switch for the other pickup to split both at the same time.
http://www.seymourduncan.com/suppor...tics.php?schematic=phase_switch_coil_split_hb

This diagram shows 2 hums, 2 vols, 1 tone with the tone doing the splitting on both pickups.
http://www.seymourduncan.com/support/wiring-diagrams/schematics.php?schematic=2h_2v_1t_3w_pp



[Scott Miller]

Re: Wiring - Help Please!

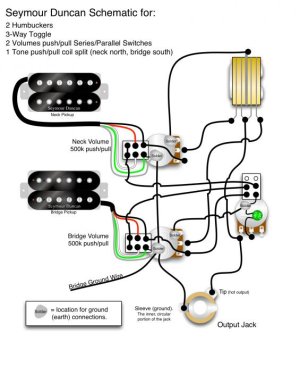

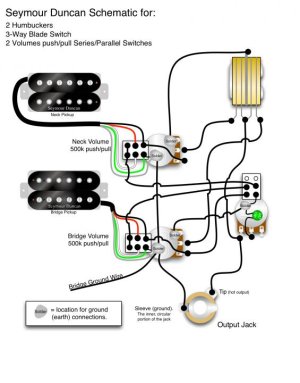

This should do it. Not sure how I ended up with two files here..........The one on the right is labelled correctly.



[wassupdoc]

Re: Wiring - Help Please!

You legends! thanks!
