Wiring help, please

[Arkitkt]

Hi there,

can someone smarter than me please take a look at this and tell me if it makes sense? It's for an explorer kit build that I'm working on.
The standard diagram on the website has individual push/pulls for splitting the PUs and another push/pull for reversing the phase on the neck OU. I'd like to have the splits wired to just one switch. PUs are a 59/Custom in the bridge, and either a 59 or a Jazz in the neck position.

Thanks in advance!



[JamesPaul]

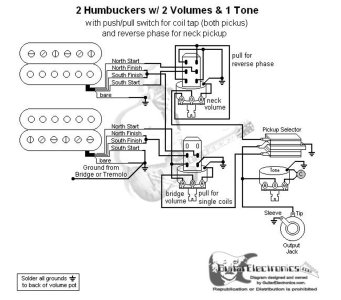

My 3rd attempt! If you do not want the phase switch, I am thinking this one.

2 HUM, 2 VOL, 1 TONE P/P SPLIT, 3 WAY TOG



[Arkitkt]

Thanks for your help!
Sorry if I didn't explain this right: I do want the phase switch. I just want both PUs split by one push/pull, not by individual switches, as in the diagram in the library here on SD. The diagram I posted shows my amateurish attempt to modify that diagram.



[JamesPaul]

You explained it correctly; I just read it wrong!



[JamesPaul]

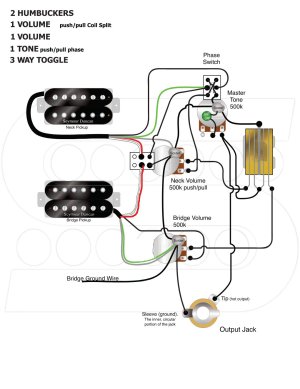

Knew I had seen this before, but had to track down where.

North-Start = Black
North-Finish = White
South-Finish = Red
South-Start = Green
Bare-Shield = Bare



[Arkitkt]

Great! Thanks.
It seems I didn't get it wrong.
