Wiring question 3 single coils

[Artie]

That will be sweet. I'm working on this right now, but I've got to head out to a Dr's appointment in about 40 minutes. If I don't get it done by then, I'll have it before the day is over. Since I don't have the switch in my hand, I have to double, and triple check my diagram, before you start soldering.



[Artie]

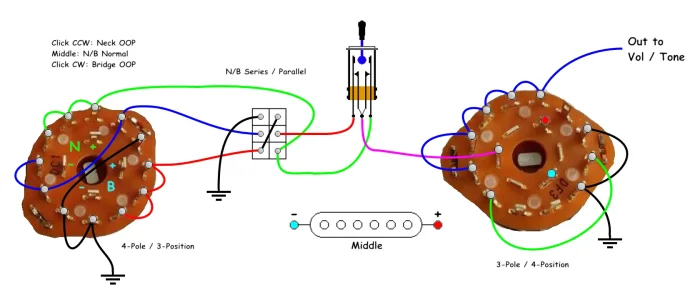

I think this is it. Make sure to orient the 3-pole / 4-position switch with the "DF3" as I have it. Connect the middle pup red and blue "dots" to where I show on the 3P4T common terminals.

Ask me if anything doesn't make sense.
