Hey folks,

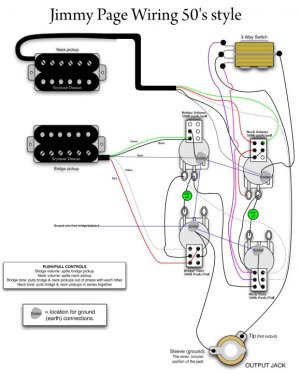

I'm really new to this, but using the parts I have on hand, what I'm after is the 50's style jimmy page wiring, with on\on\on mine switches for series\coil cut\parallel for each humbucker 4 Push-pull pots. Neck Tone Push-Pull puts Bridge & Neck Pickups in Series with each other. Bridge Tone Push-Pull puts Bridge & Neck Pickups out of phase with each other. I'm hoping the neck & bridge volume push-pull pots could be used to select which coil is cut for their respective pickups, when the middle position of the on\on\on mini switches are engaged? Would anyone be kind enough to help me with the changes needed to this diagram?
Thanks a bunch!
Will
I'm really new to this, but using the parts I have on hand, what I'm after is the 50's style jimmy page wiring, with on\on\on mine switches for series\coil cut\parallel for each humbucker 4 Push-pull pots. Neck Tone Push-Pull puts Bridge & Neck Pickups in Series with each other. Bridge Tone Push-Pull puts Bridge & Neck Pickups out of phase with each other. I'm hoping the neck & bridge volume push-pull pots could be used to select which coil is cut for their respective pickups, when the middle position of the on\on\on mini switches are engaged? Would anyone be kind enough to help me with the changes needed to this diagram?
Thanks a bunch!
Will
